HT-760
HT-760 automatic die cutting and creasing machine is equipped with state-of-the-art feeding and delivery systems, variable speed conveying, and automatic lubrication to ensure maximum production throughput and reliability.

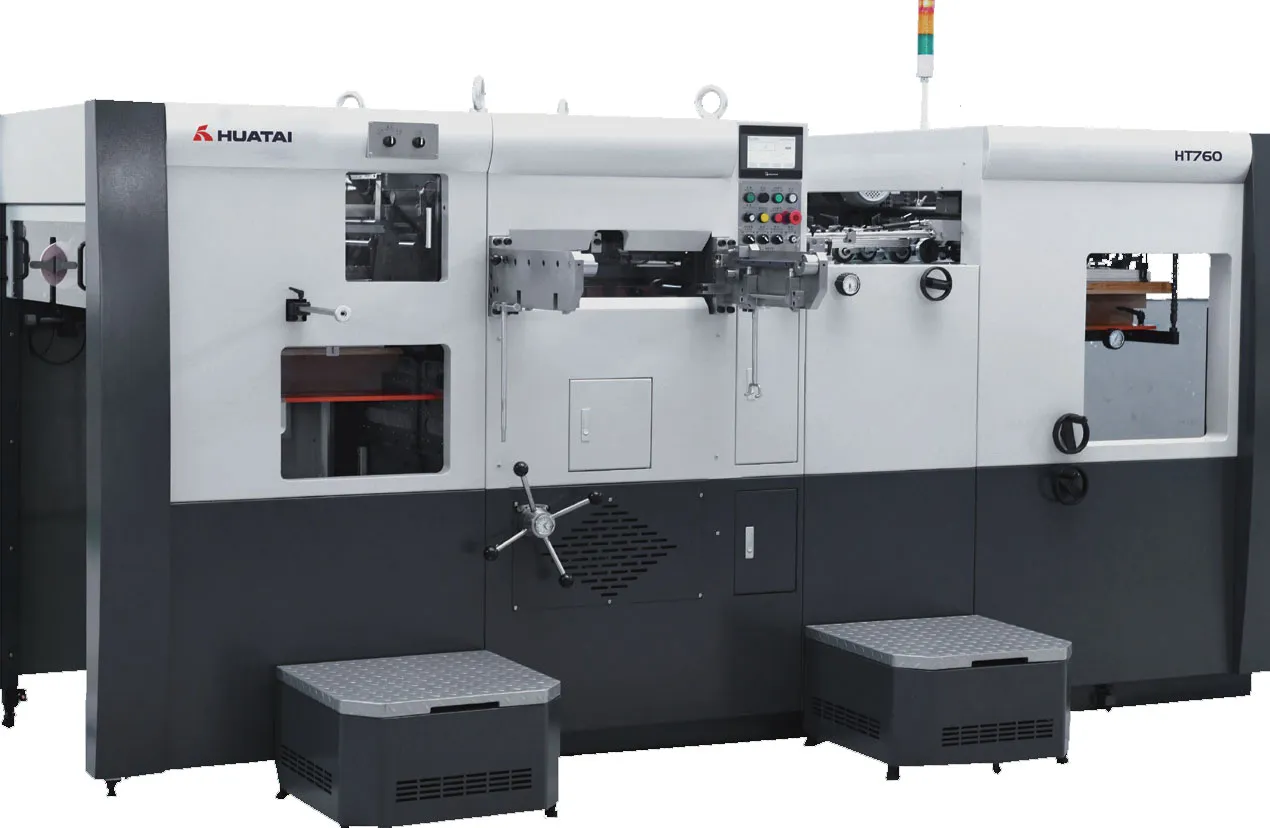

Introducing the HT-760
The HT-760 automatic die cutting and creasing machine is equipped with state-of-the-art feeding and delivery systems, variable speed conveying, and automatic lubrication to ensure maximum production throughput and reliability.
Engineered for precision and high-volume operations, this flagship model integrates world-class components with intelligent electronic control to deliver micro-precision registration and clean results across a wide range of paper and corrugated board substrates.
High-Speed Output
Achieves speeds of up to 10,000 sheets per hour with non-stop automatic feeding and delivery systems.
Global Brand Parts
Built with world-class components including Becker vacuum pumps and Siemens main motors for ultimate reliability.
Intelligent PLC Control
Integrated electronic PLC control system with electronic cam and photoelectric monitoring for real-time diagnostics.
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components
High-speed feeder optimized for all kinds of papers, coordinated with preloading and vice delivery mechanisms.
- High-speed feeder satisfies high speed feeding of all kinds of papers.
- Reliable paper separating device, 4-8 suckers improve adaptability and smooth feeding.
- Separating spring leaves and hair-brushes adjust conveniently, ensuring separating reliable, paper feeding smoothly.
- Coordinated with preloading unit and vice delivery mechanism, realize non-stop feeding.

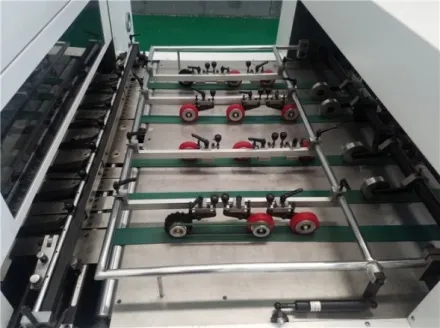

Delivers stable, smooth sheet movement to guarantee micro-precision registration.
- Paper moving stably and smoothly, ensures accurate positioning.
- Paper positioning can be adjusted while paper moving.
- High-quality side lay positioning mechanism equipped with sensors ensures accurate positioning before paper entering grippers.
- Variable speeding conveying mechanism ensures high efficiency of paper feeding for thin paper and corrugated papers.
Heavy-duty main drive worm gear and bronze wheel with toggle-action movement.
- High specification, heat treated steel drive Worm and bronze Wheel main drive. Toggle action die cutting movement.
- Precise driving gear and power-assisted device, ensuring stability of high-speed die cutting.

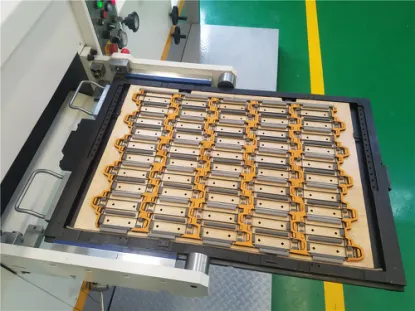

- Pneumatic chase-lock mechanism makes die change quickly and die lock reliably.
- Adjustable chase design clips different dies conveniently.
- Adopt super-hard and durable steel plates.
- Plate frame is made by special materials which is amorphous processed with the characteristics of stable durable no deformation with adjustable bottom plate lock system to suit the different specifications of the die-cutting plate installation for customers.
- Compatible with other equipment die-cutting plate do not need to redo the plate.
- Central line on the cutting chase helps put the die at the right position when using it next time.
- You could set the time and quantity to lubricate through automatic lubrication system.

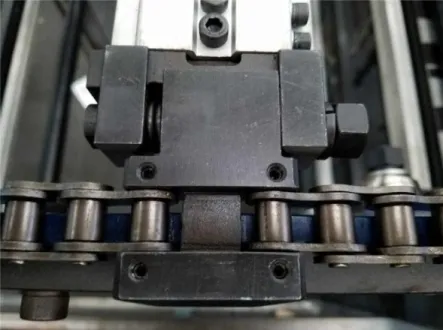

- Innovative gripper bar location system makes long term of precise positioning by fine-tuning.

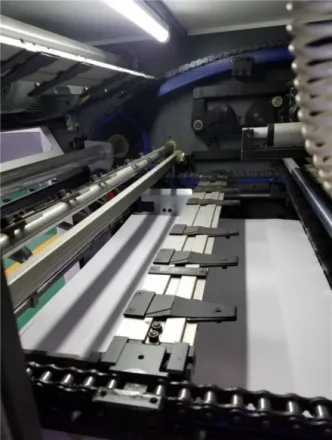

Outfitted with side and back trimmers to deliver perfectly aligned paper piles.
- Adopt side trimmer and back trimmer device ensuring tidy delivery of paper pile.
- Adjustable expansion hair brush device ensuring paper delivery smoothly.
- Equipped with automatic secondary delivery mechanisms realized non-stop delivery promoting the working efficiency.
- Non-stop sampling device realize real time checking die cutting precision.
- Each with Accuracy speed 8000-9000 sheets/hour is inside ±0.1mm, all machines are tested strictly.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Maximum Sheet Size | 788 x 546 mm |
| Minimum Sheet Size | 320 X 250 mm |
| Maximum Cutting Size | 750 x 570 mm |
| Maximum Die Cutting Size | 750 x 570 mm |
| Inside Chase Size | 756 x 530 mm |
| Height of Cutting Rule | 23.8 mm |
| Die Cutting Precision | ±0.15mm |
| First Cutting Rule | 12 mm |
| Min. Gripper Margin | 7 mm |
| Max Feeding Pile Height | 1280 mm |
| Max Delivery Pile Height | 1160 mm |
| Max Die cutting Pressure | 250 Tons |
| Sheet Thickness / Corrugated Paper | 80 g/㎡ – 2000 g/㎡, E flute corrugated paper ≤4mm |
| Maximum Speed | 10000 s/h |
| Dimensions | L 3725 x W 2117 x H 1647 mm |
| Total power of motors | 14 KW |
| Compressed Air | 0.8 Mpa |
| Gross weight | 8000 KGs |
