HT-1060PG
Huatai automatic die cutting and stripping machine model HT-1060PG features richer operation functions with electrical components and drive systems from internationally famous brands to ensure high-speed precision and ultimate reliability.

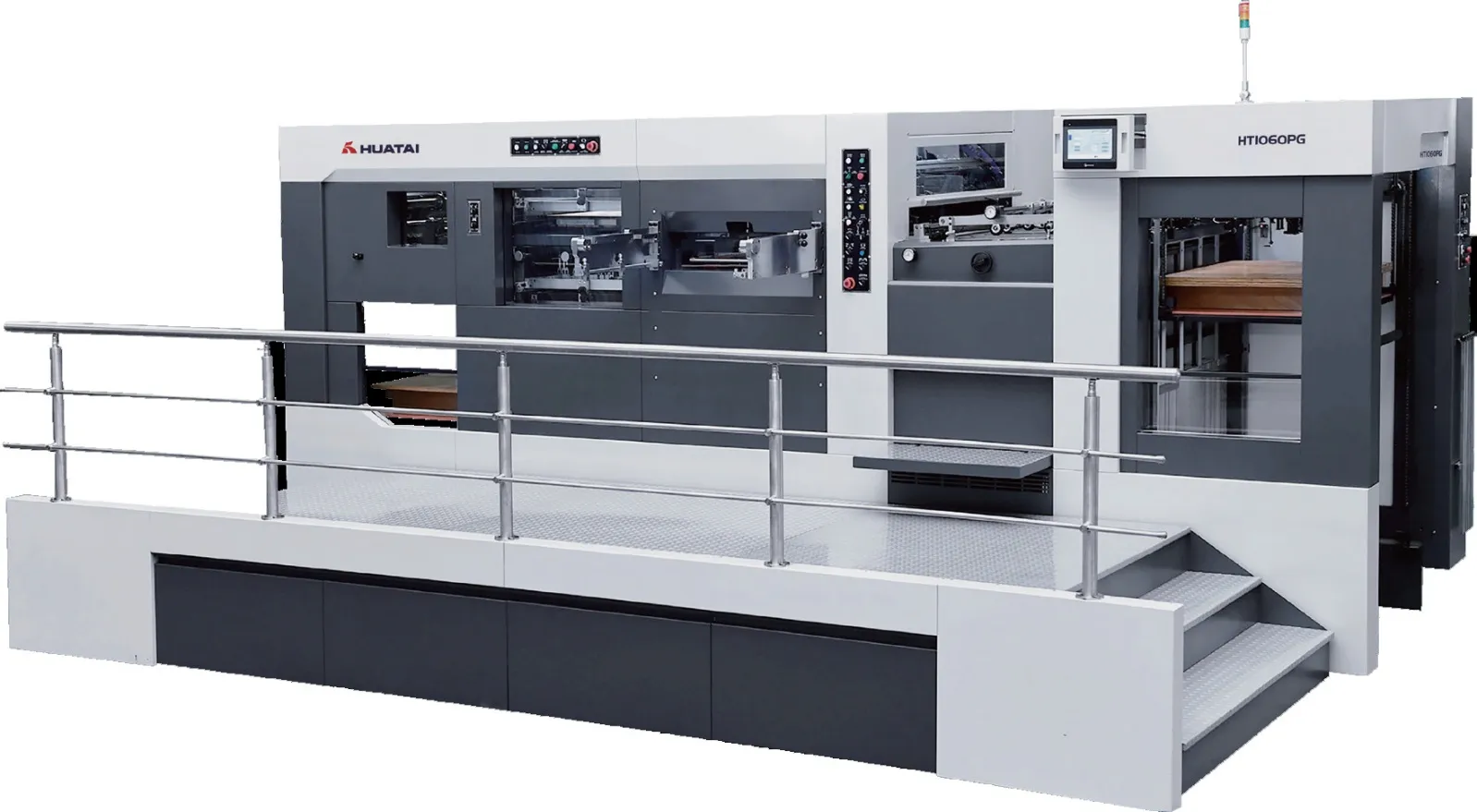

Introducing the HT-1060PG
The HT-1060PG is a heavy-duty automatic die-cutting and stripping machine designed for high-precision, high-output industrial packaging. Engineered with a robust base cast from QT60 nodular graphite iron, it operates at speeds up to 9,000 sheets per hour (8,500 s/h under active stripping) with 305 metric tons of cutting pressure.
This flagship model offers an advanced three-frame stripping unit with automated top-frame lift, quick-lock tool integrations, and automatic protection windows. Controlled by Mitsubishi PLC components and a motorized pressure adjustment mechanism, the HT-1060PG processes thick cardboard and corrugated substrates up to 4mm with a register precision within ±0.075 mm.
Ultra-High Speed
Achieves maximum speed up to 9,000 sheets per hour, and stripping speed up to 8,500 sheets per hour.
Enhanced Stripping
Center line system in stripping unit with integrated quick-lock tools for top, middle, and bottom frames.
305 Tons Cutting Pressure
Delivers 305 metric tons of pressure driven by a servo motor pressure adjustment system.
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components

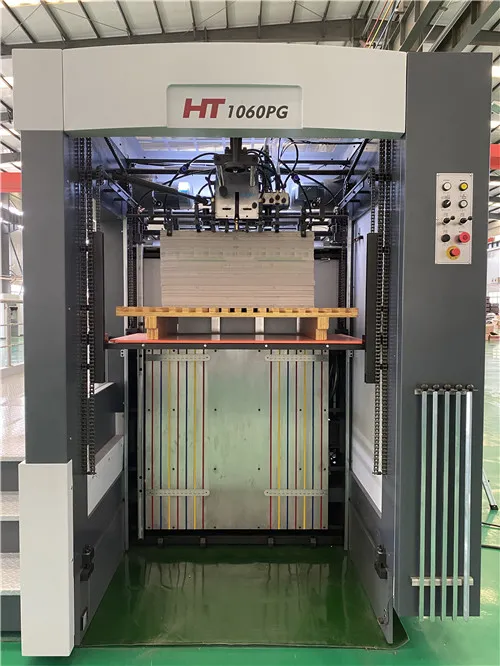

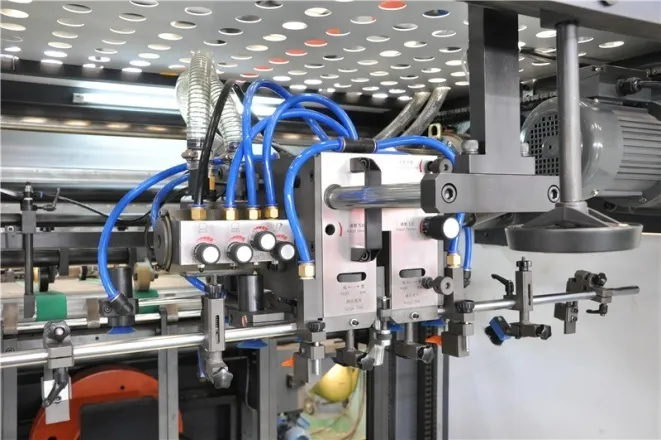

High-pile feeder coordinates with non-stop feeding mechanics.
- High-pile feeding and delivery reaches height of 1580mm feeding and 1400mm delivery.
- Feeder pile tray centered automatically when reaching the floor.
- 8 copper bush suckers improve feeding adaptability.
- Double sheet detector and quick positioning function.

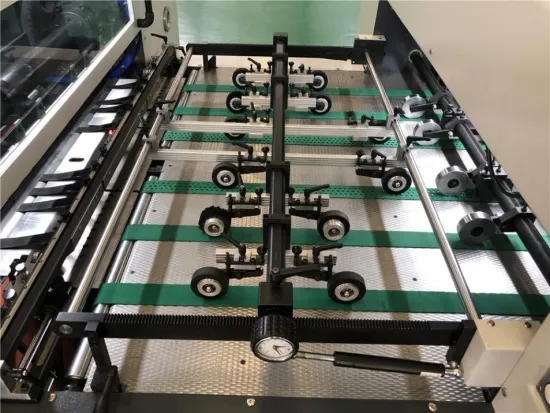

Conveying system ensuring exact register and sheet deceleration.
- Moves paper stably and smoothly, allowing adjustments while running.

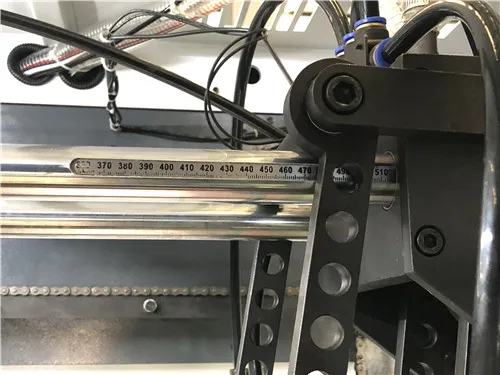

- Equipped with suction belts and central adjustment for rollers and brushes.
- Ultrasonic double-sheet detector at the in-feed.

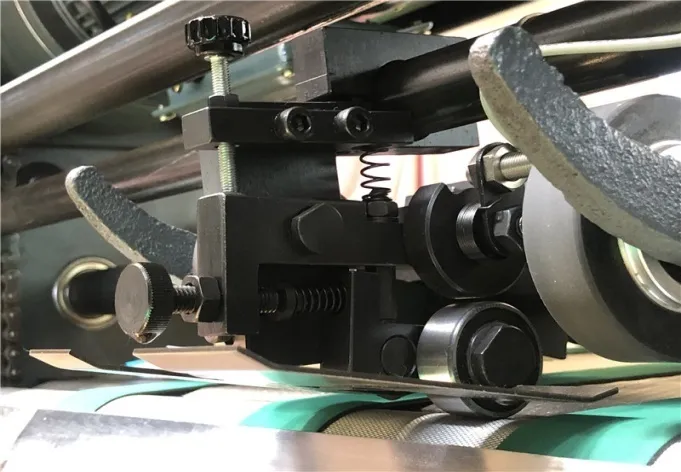

- Four motor-controlled front lays with active optical monitoring.

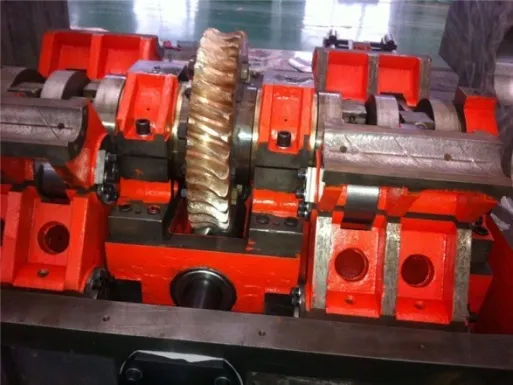

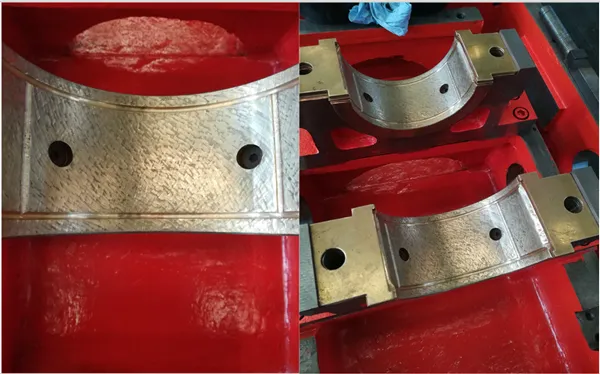

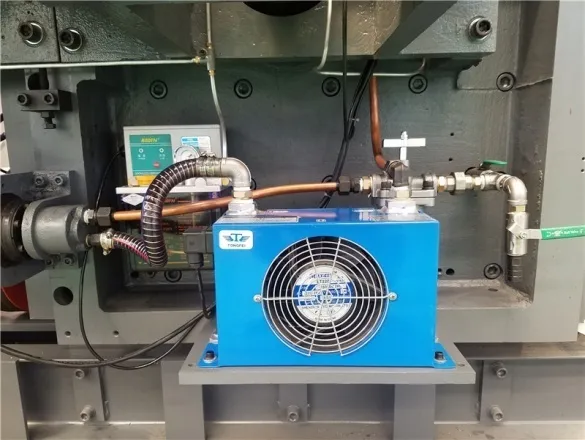

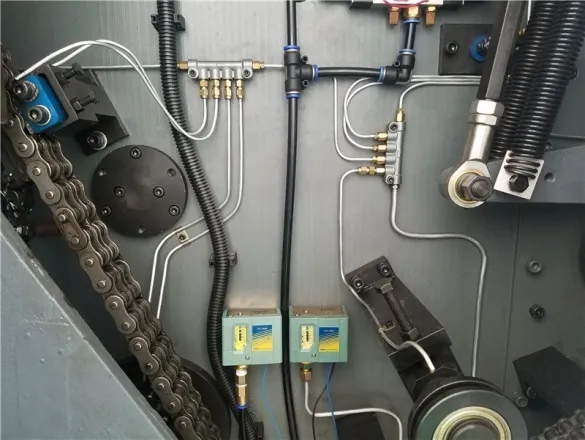

High-specification steel drive worm and bronze gear main drive.
- Precise driving gear and power-assisted device ensuring stability at high speed.
- Pneumatic clutch and quick lock for die-cutting plate/chase.

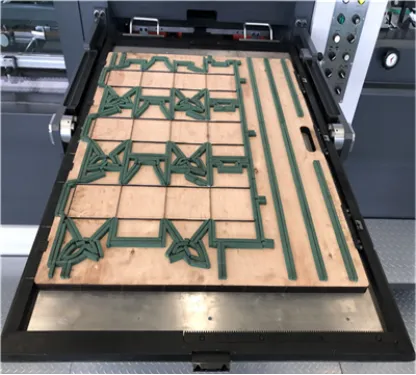

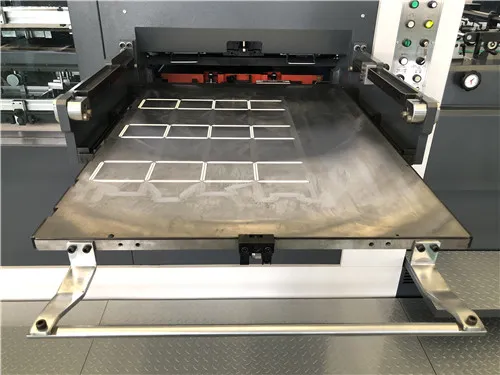

- Die cutting chase with diagonal hole pattern suitable for various die sizes.
- Air cushion for easy pulling and pushing of sandwich cutting plates.

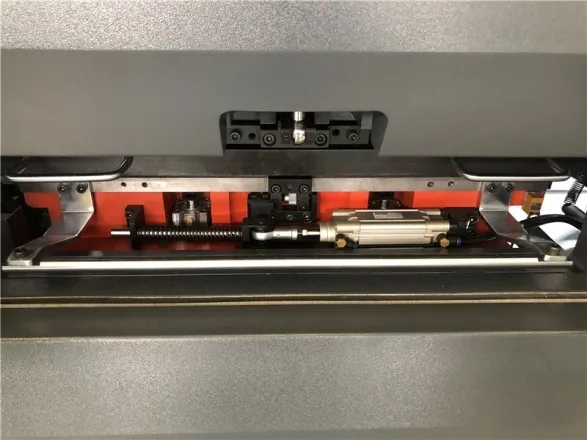

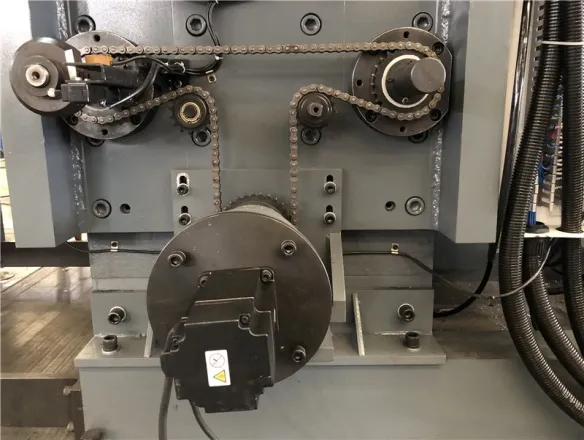

- Servo motor driven cutting pressure adjustment with ball screws.

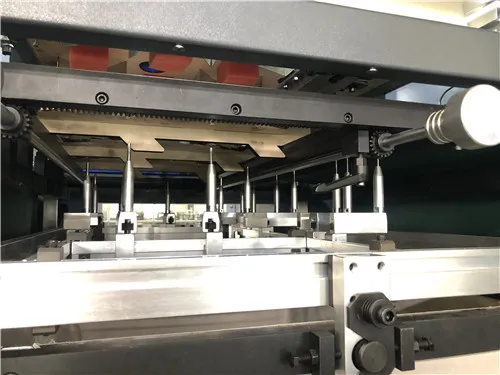

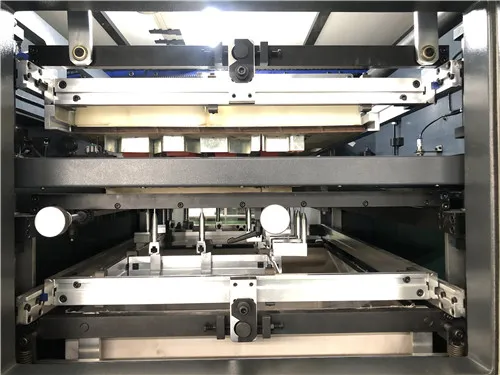

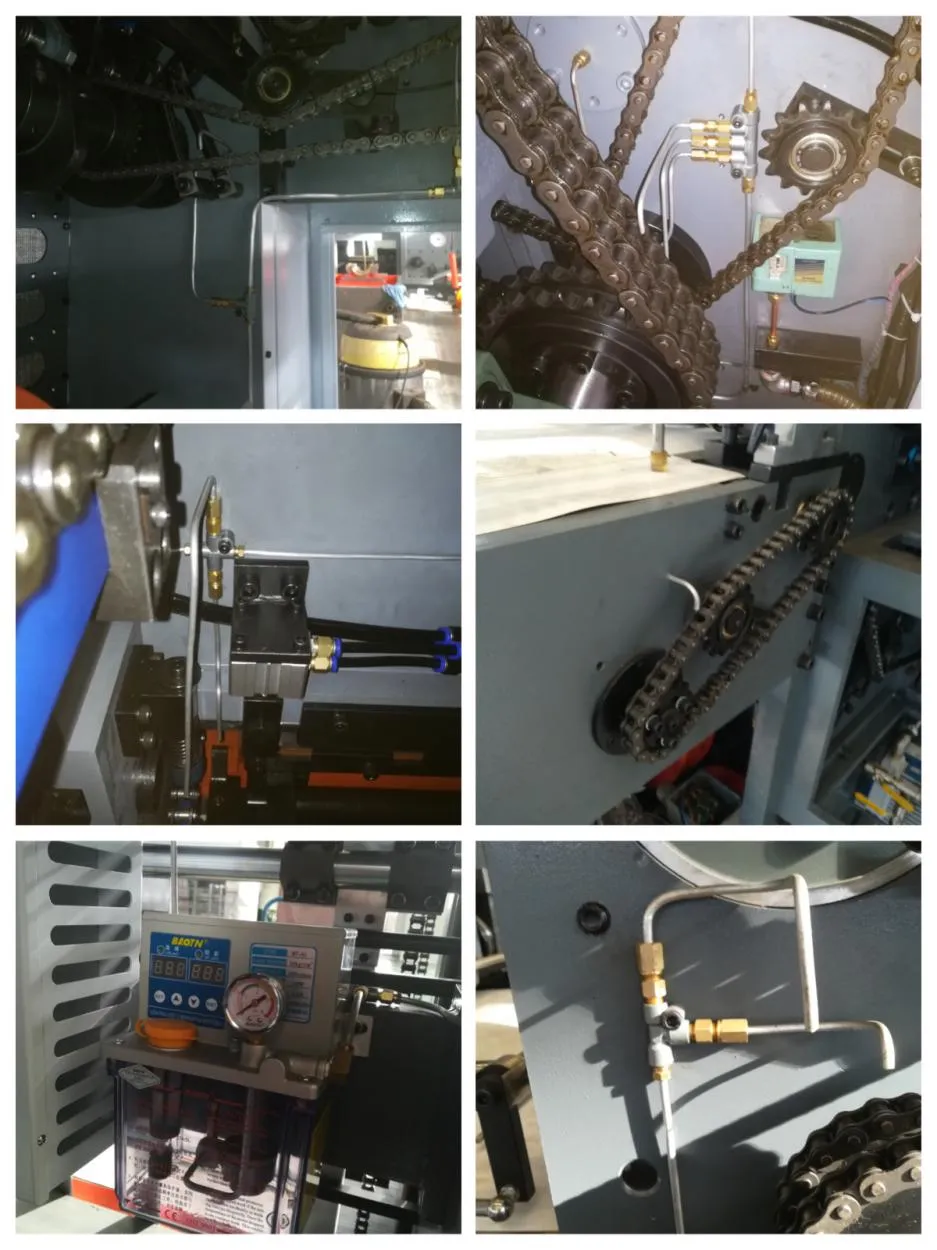

Center-line quick-lock stripping frame with automatic lift.
- Integrated quick lock systems for top, middle, and bottom frames.
- Upper stripping frame can be lifted automatically.
- Protection window moves automatically up and down.
- Optimized stripping driving from main shaft makes stripping stable and reliable.

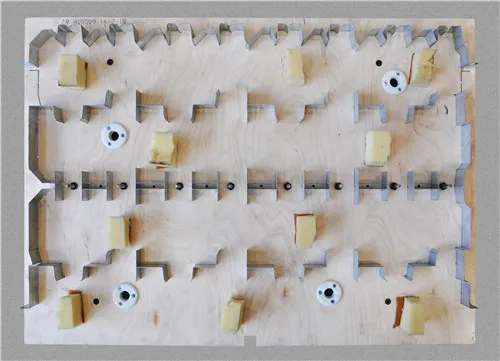

- Needle stripping and mould plates available for different stripping needs.

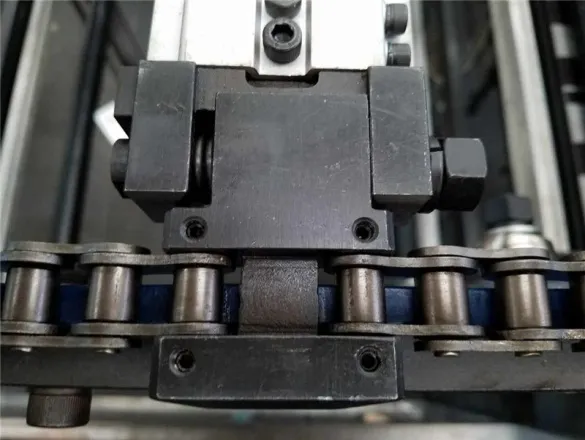

Motorized back brushes and pile alignment structure.

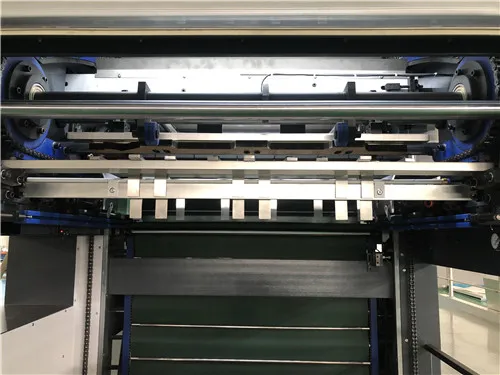

- Adopt side trimmer and back trimmer device ensuring tidy pile.
- Motorized long sheet back brush device ensuring smooth delivery.
- Pneumatic flap for test sheet removal.
- Delivery pile accuracy within ±0.075mm at speed of 8,500 sheets/hour.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Model | HT-1060PG |
| Maximum Sheet Size | 1060 x 760 mm |
| Minimum Sheet Size | 400 x 380 mm |
| Maximum Die Cutting Size | 1050 x 750 mm |
| Inside Chase Size | 1070 x 760 mm |
| Die Cutting Plate Size | 1065 x 760 mm |
| Height of Cutting Rules | 23.8 mm |
| First Cutting Rule | 8 - 16 mm |
| Minimum Gripper Margin | 9 mm |
| Die Cutting Precision | ±0.075 mm |
| Max Feeding Pile Height | 1750 mm |
| Max Delivery Pile Height | 1600 mm |
| Max Die cutting Pressure | 305 Tons |
| Substrate / Cardboard | 80 g/㎡ - 2000 g/㎡, corrugated paper ≤4 mm |
| Maximum Speed | 9000 s/h |
| Max Stripping Speed | 8500 s/h |
| Compressed Air | 0.8 Mpa |
| Dimensions | L 5860 x W 4220 x H 2385 mm |
| Total power of motors | 20 KW |
| Gross weight | 20 Tons |
