HT-1050T
HT-1050T (also known as HT-1060T) is a modern hot foil stamping and die-cutting machine widely used in the high-end packaging industry. It features longitudinal and transversal foil pull systems and handles large-format operations with ease.

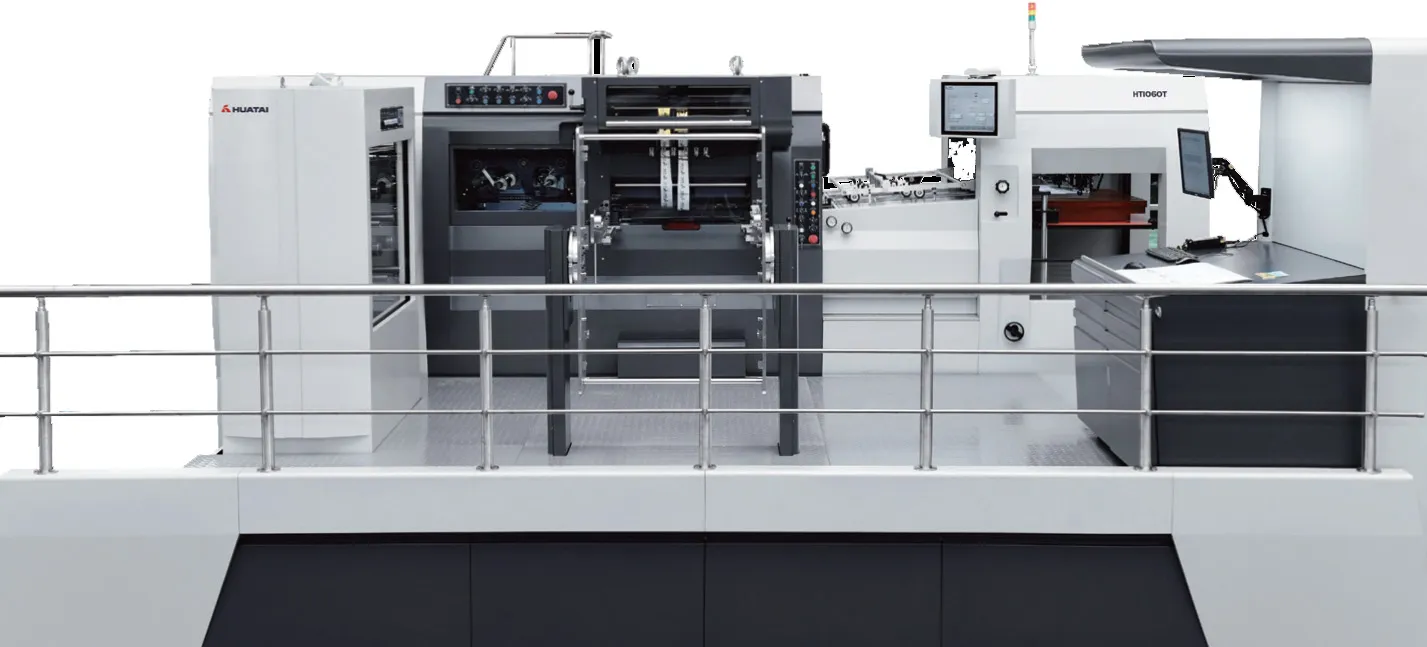

Introducing the HT-1050T
The HT-1050T (referred to as HT-1060T in field specifications) represents the cutting edge of industrial foil stamping machinery. Primarily deployed in high-end cosmetic, spirits, and luxury packaging, it combines a longitudinal and transversal foil pull system with an advanced 16-zone intelligent heating grid.
Integrating high-performance Yaskawa servo drives and a computerized stamping program operating on Windows OS, the HT-1050T achieves foil advance accuracy with an error tolerance under 1mm. Features like non-stop main/vice feeding pallets, optical monitoring on all guides, and a platform blow device make high-speed stamping on thin paper substrates highly efficient and stable.
Dual-Direction Foil System
Handles longitudinal and transversal foil stamping with an advanced 5-axis advance system.
16 Heating Zones
16 independent heating zones controlled by an intelligent heating system developed by Huatai.
High Stamping Precision
Foil advance error tolerance within 1mm, maximizing foil savings and stamping quality.
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components
Heavy-duty paper feeding mechanism with louver feeding system.
- Super-heavy louver feeding mechanism with a max speed of 12,000 sheets/hour.
- Electro-mechanical double-sheet inspection mechanism.
- PLC and electronic coder control whole machine timing.
- Side and front lays detect paper position with high-precision optical guides.
- Main and vice feeding pallets switch automatically for non-stop feeding.
Delivers smooth, stable sheet movement for accurate registration.
- Suction belts on the feed table keep paper moving stably.
- Central adjustment system for rollers and brushes.
- Ultrasonic double-sheet detector and four motor-controlled front lays.
- Slows down sheets before reaching front lays to maintain register accuracy.
Heavy-duty casting base with high precision index drive.
- High specification, heat-treated steel drive worm and bronze wheel drive.
- Machine base, wall plates, top and bottom tables made of QT60 nodular graphite cast iron.
- Photoelectric sensor monitors frame position; pneumatic lock mechanism.
- Equipped with two honeycomb panels (one active, one backup) for job changes.

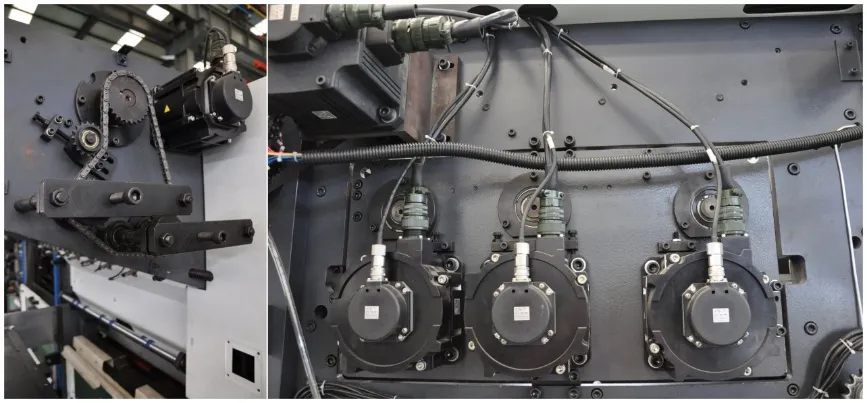

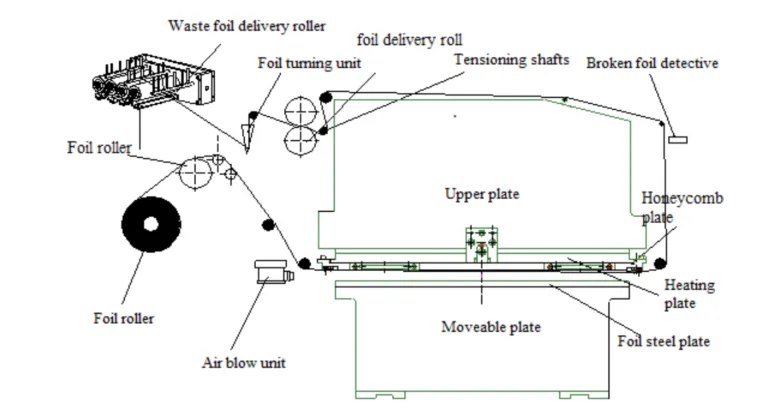

Advanced foil feeding and rewinding mechanism driven by Yaskawa servos.
- Longitudinal 3-axis feeding / 1-axis rewinding; transverse 2-axis feeding / 1-axis rewinding.
- Controlled by Yaskawa servo motors to ensure stable, reliable tension control.
- Retractable discharge structure makes foil change operation quick and convenient.
- Foil collect brush roller system automatically adjusts speed to keep waste foil under constant tension.
- Foil breaking detection device automatically stops machine on foil breakage.

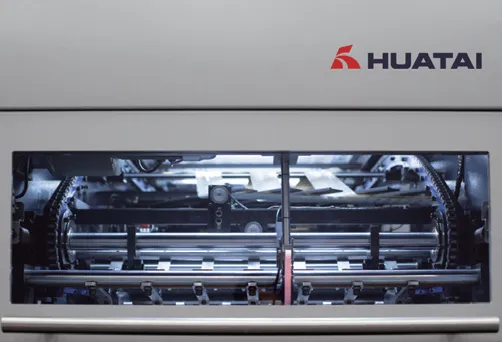

Vice delivery mechanism for non-stop stacking and secondary sorting.
- Vice delivery mechanism realizes automatic switch between main and vice pallets.
- Auto trimmer and adjustable-pressure hair brush.
- Involution photoelectric sensor prevents delivery pallet from going too high.
- Pneumatic flap for test sheet removal; check stamping quality in real-time.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Model | HT-1050T |
| Maximum Sheet Size | 1060 x 740 mm |
| Minimum Sheet Size | 400 x 350 mm |
| Maximum Die Cutting Size | 1040 x 730 mm |
| Maximum Foil Stamping Size | 1030 x 730 mm |
| Inside Chase Size | 1050 x 740 mm |
| Maximum Foil Width | 15 - 1020 mm (Longitudinal), 15 - 630 mm (Transversal) |
| Die Cutting Precision | ±0.075 mm |
| Foil Stamping Precision | ±0.075 mm |
| Heating Zones / Temp | 16 zones, 0 - 190 ℃ |
| Max Feeding Pile Height | 1630 mm |
| Max Delivery Pile Height | 1450 mm |
| Thickness / Cardboard | Cardboard 0.1 - 2 mm, corrugated paper ≤4 mm |
| Maximum Cutting Speed | 8000 s/h |
| Total Power | 65 KW |
| Weight | 21 Tons |
| Dimensions | L 5820 x W 3865 x H 2200 mm |
