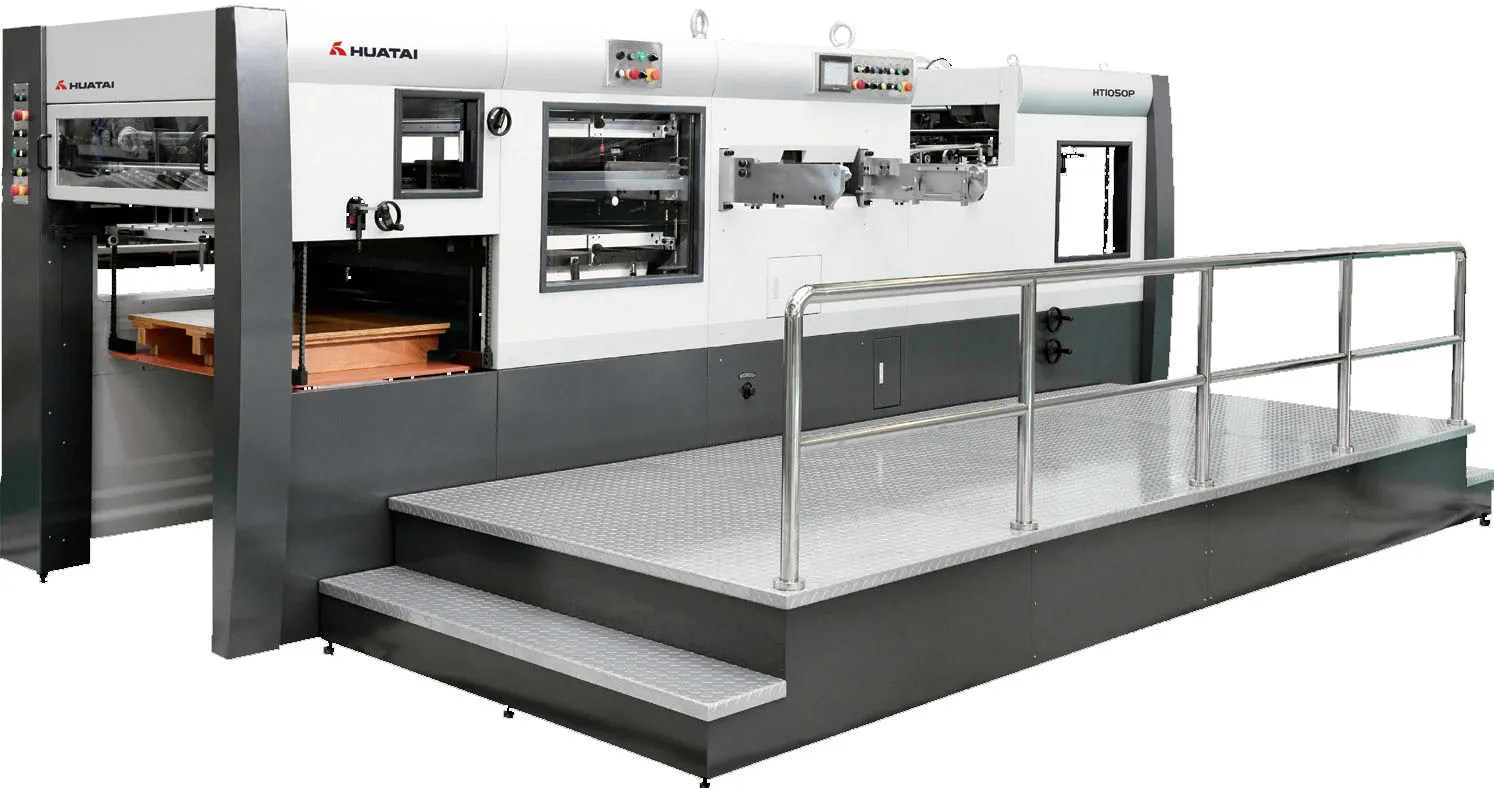

HT-1050P
Huatai automatic die cutting machine with stripping unit adopts high precision index, pneumatic plate-lock, pneumatic clutch, overload protection, and electric pressure adjustment system, ensuring stable performance at higher running speeds.
Introducing the HT-1050P
The HT-1050P is a high-speed automatic die-cutting and creasing machine equipped with an integrated stripping unit. By incorporating a three-frame (top, middle, bottom) stripping structure and a draw-out support frame, it streamlines make-ready times and simplifies operations.
Running at a high output speed of up to 8,000 sheets per hour, the HT-1050P utilizes a full digital monitoring system with real-time PLC, electronic cam controls, and optical diagnostic sensors. Built to European CE safety standards, this machine handles substrates ranging from 80g/m² cardboard to 4mm corrugated board with a precision of ±0.075 mm.
Stripping Integration
Optimized top, middle, and bottom stripping frames drive directly from the main shaft to minimize preparation times.
World-Class Drive parts
Employs German Becker vacuum pump systems and Siemens motors for durable pneumatic separation and high torque.
Full-Time Fault Diagnostic
Digital monitoring by PLC, electronic cam, and photo-sensors makes fault diagnosis easy.
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components

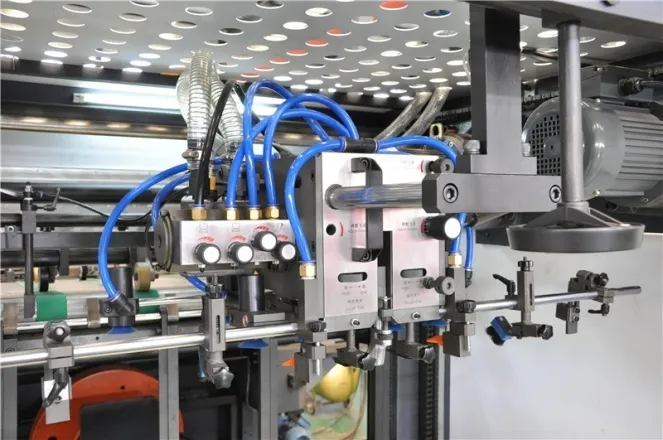

High-speed feeder optimized for smooth sheet feeding.
- High-speed feeder satisfies feeding of all kinds of papers.
- Reliable paper separating device; 4-8 suckers improve adaptability.
- Pile platform with motorized side pile adjustment.
- Separating spring leaves and hair-brushes adjust conveniently.
- Coordinated with preloading unit and vice delivery mechanism to realize non-stop feeding.
Delivers stable, smooth sheet movement to guarantee micro-precision registration.
- Paper moves stably and smoothly, ensuring accurate positioning.
- Paper positioning can be adjusted while paper is moving.
- High-quality side lay positioning mechanism equipped with sensors.
- Variable speed conveying mechanism ensures high efficiency of paper feeding for thin paper and corrugated papers.

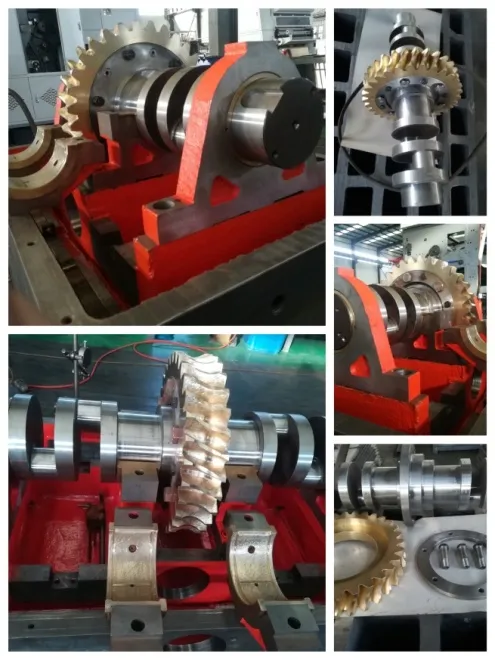

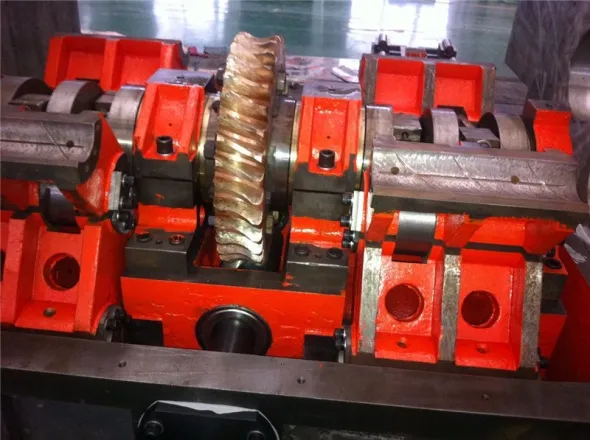

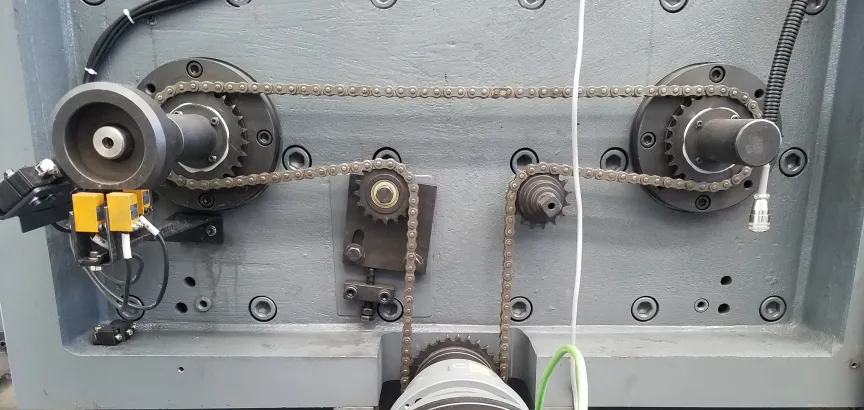

Heavy-duty main drive worm gear and bronze wheel with toggle-action movement.
- High specification, heat-treated steel drive worm and bronze wheel main drive.
- Worm gear is driven by manually scrapped copper bush.
- Precise driving gear and power-assisted device ensuring stability.

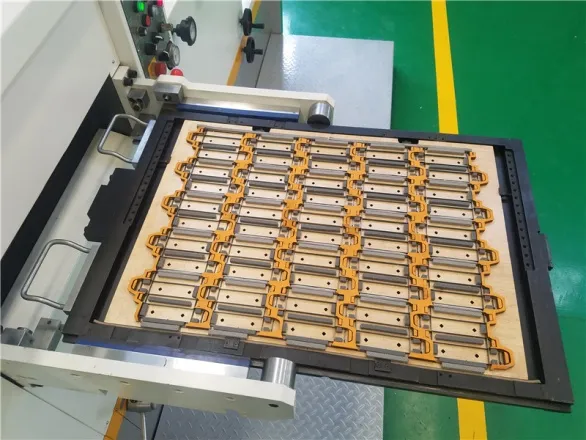

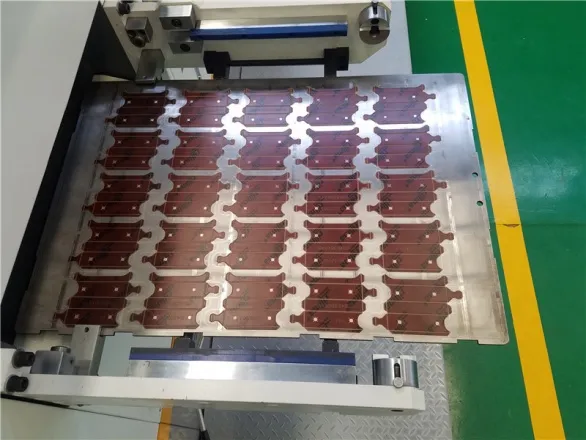

- Pneumatic chase-lock mechanism makes die change quickly and die lock reliably.
- Adopt super-hard and durable steel plates.
- Plate frame is made by special materials which are amorphous processed.
- With adjustable bottom plate lock system to suit the different specifications.

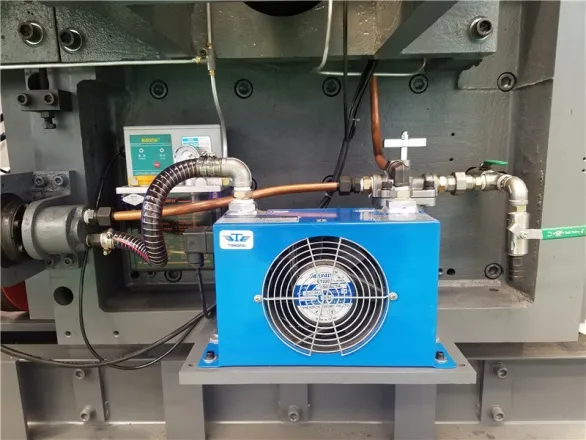

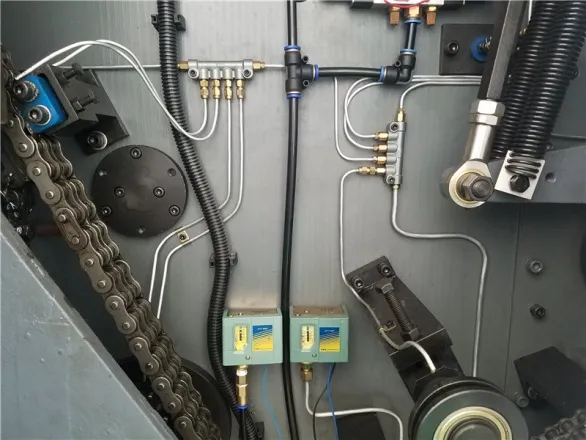

- Automatic pump cooling circulation system ensures main motor lubrication.

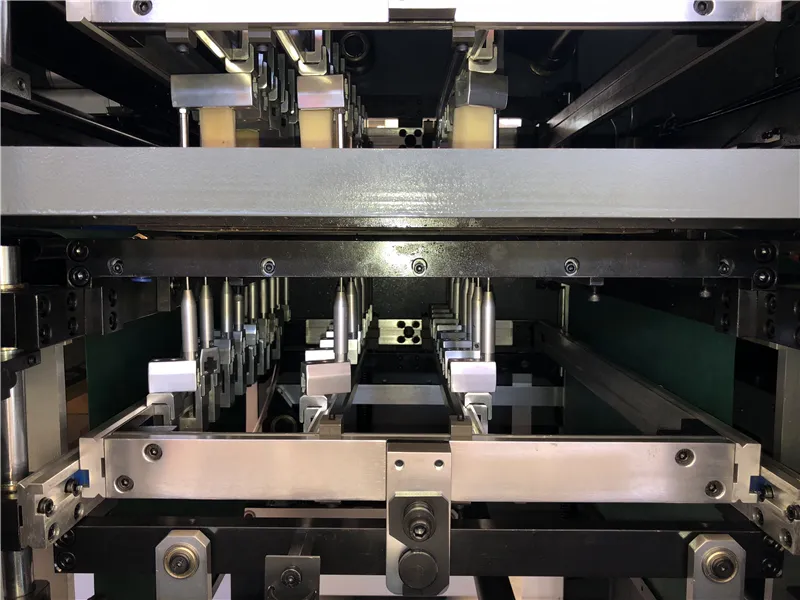

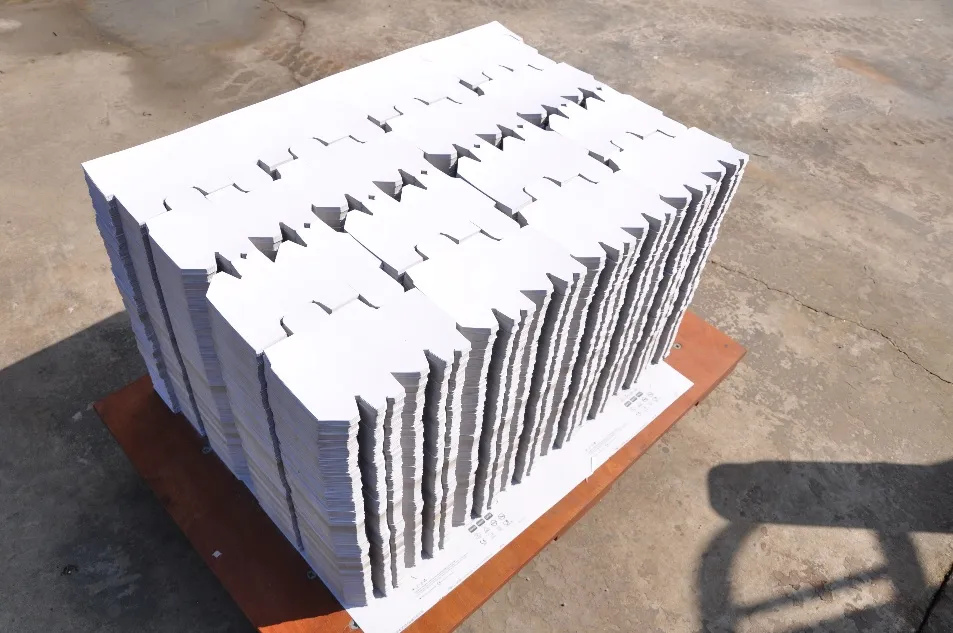

Tri-frame stripping system (top, middle, and bottom) for high automation.
- Optimized stripping frame driving mechanism from main driving shaft.
- Stripping support frame can be drawn out to shorten make-ready time greatly.
- Top and bottom frame adopt center line structure equipped with fine adjustment device.
- Negative stripping plate adopts quick lock-up mechanism, convenient and reliable.
- Needle stripping and mold plates stripping are optional based on die cutting needs.
- Reduces operator labor intensity and increases output rate.

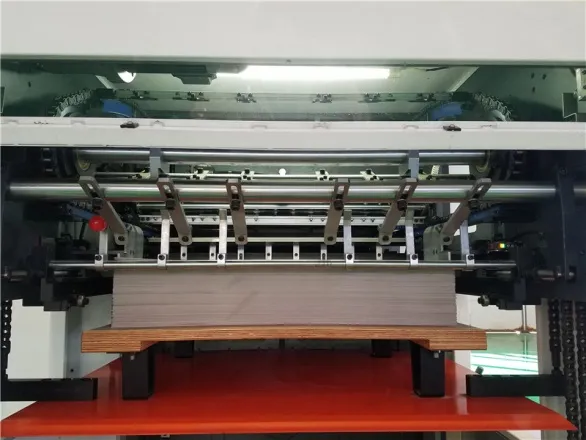

Outfitted with side and back trimmers to deliver perfectly aligned paper piles.
- Adopt side trimmer and back trimmer device, ensuring tidy delivery.
- Adjustable expansion brush device ensuring paper delivery smoothly.
- Equipped with automatic secondary delivery mechanisms to realize non-stop delivery.
- Non-stop sampling device realizes real-time checking precision.
- Pneumatic flap for test sheet removal.
- Achieves accuracy within ±0.1mm at speeds of 8,000 sheets/hour.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Model | HT-1050P |
| Maximum Sheet Size | 1050 x 740 mm |
| Minimum Sheet Size | 400 x 360 mm |
| Maximum Die Cutting Size | 1040 x 730 mm |
| Inside Chase Size | 1050 x 740 mm |
| Die Cutting Precision | ±0.075 mm |
| First Cutting Rule | 10 mm |
| Min. Gripper Margin | 9 mm |
| Max Feeding Pile Height | 1450 mm |
| Max Delivery Pile Height | 1300 mm |
| Max Die cutting Pressure | 300 Tons |
| Substrate / Cardboard | 80 g/㎡ - 2000 g/㎡, corrugated paper ≤4 mm |
| Maximum Speed | 8000 s/h |
| Dimensions | L 5585 x W 3850 x H 2005 mm |
| Total power of motors | 16.9 KW |
| Gross weight | 17 Tons |
