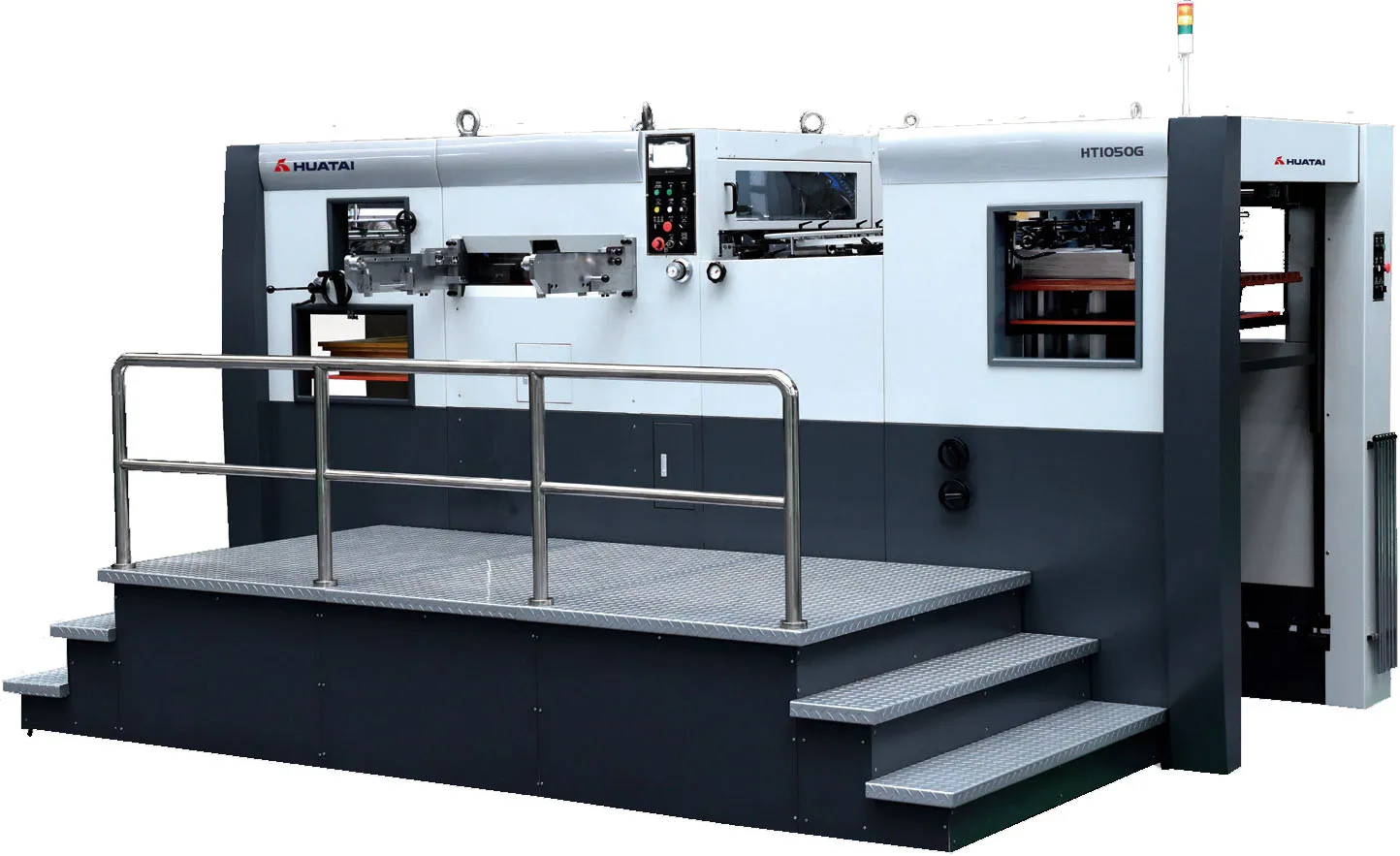

HT-1050A
Huatai automatic die cutting machine unit adopts high precision index, pneumatic plate-lock, pneumatic clutch, overload protection, and electric pressure adjustment system, ensuring stable performance at higher running speeds.
Introducing the HT-1050A
The HT-1050A is a premier automatic die-cutting and creasing machine engineered for high-volume label and folding carton production. Equipped with an advanced non-stop feeder and delivery system, it ensures continuous throughput at speeds of up to 8,000 sheets per hour.
By utilizing top-tier international components, including Becker vacuum pumps and Siemens main motors, the HT-1050A guarantees precise die-cutting accuracy within ±0.075 mm. Features like motorized pressure adjustment, automatic timing lubrication, and a main drive chiller keep the platform running stably under high demand.
High Precision Unit
Adopts high precision index, pneumatic plate-lock, pneumatic clutch, and overload protection.
Global Brands Integration
Built with Becker vacuum pressure pumps and Siemens main motors to guarantee reliability.
Real-Time PLC Monitoring
Full PLC, electronic cam, and photoelectric monitoring for real-time tracking and fault diagnosis.
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components

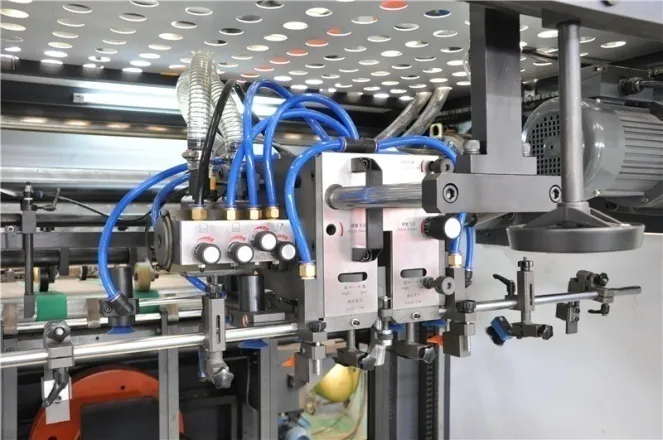

High-speed feeder optimized for smooth sheet feeding.
- High-speed feeder adapts to feeding all kinds of papers.
- Reliable paper separating device; 4-8 suckers improve adaptability.
- Pile platform with motorized side pile adjustment.
- Separating spring leaves and hair-brushes adjust conveniently.
- Coordinated with preloading unit and vice delivery mechanism to realize non-stop feeding.
Moves sheets stably and smoothly to guarantee positioning.
- Paper moves stably and smoothly, ensuring accurate positioning.
- Paper positioning can be adjusted dynamically while paper is moving.
- High-quality side lay positioning mechanism equipped with sensors.
- Variable speed conveying mechanism ensures high efficiency for thin paper and corrugated papers.

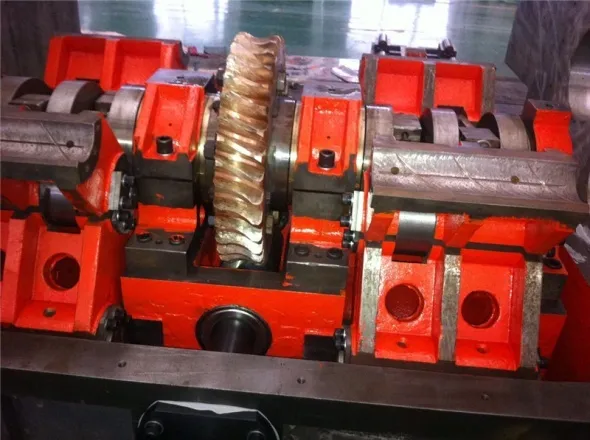

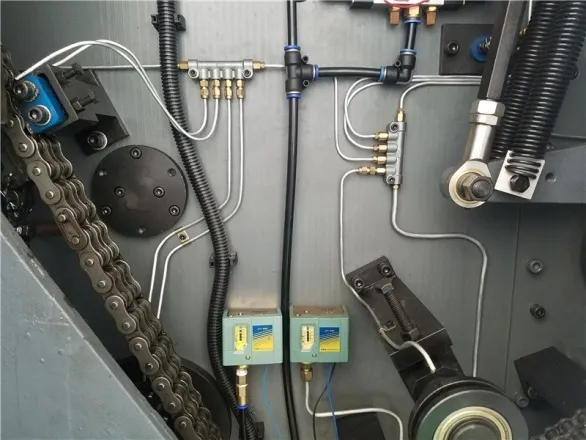

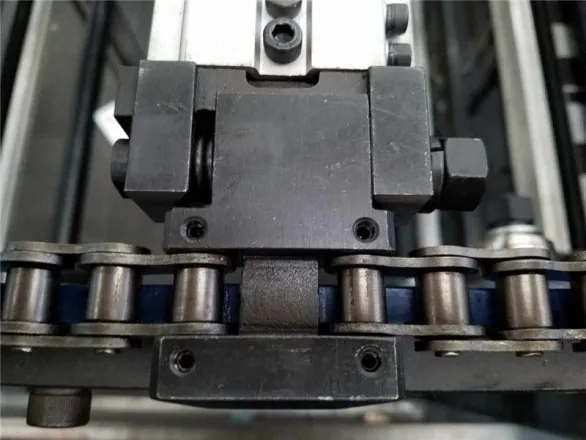

Heavy-duty heat-treated steel drive worm and bronze wheel toggle action.

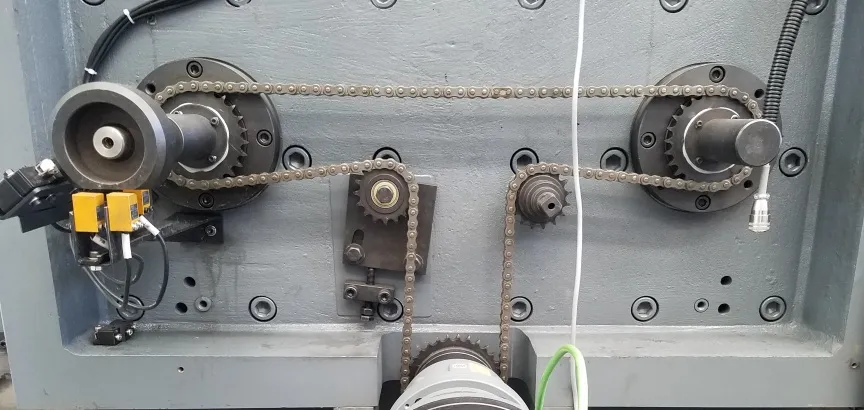

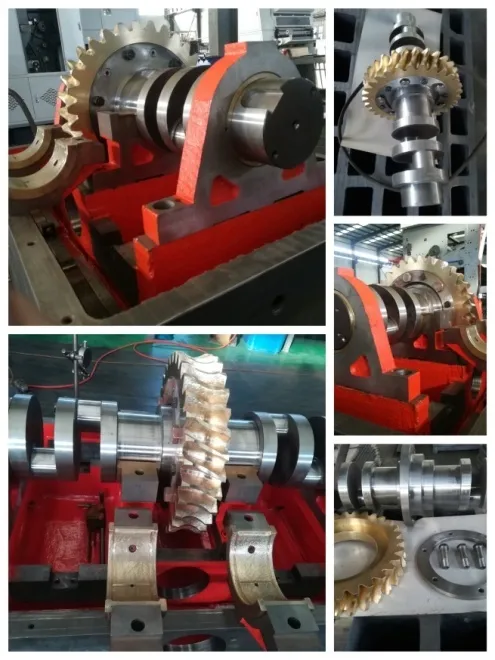

- High specification, heat-treated steel drive worm and bronze wheel main drive.
- Worm gear is driven by manually-scrapped copper bush.

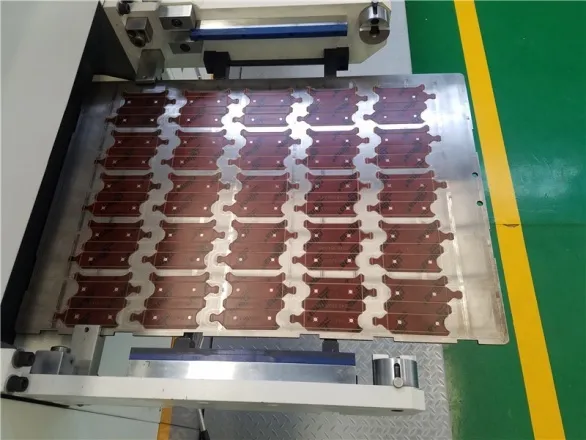

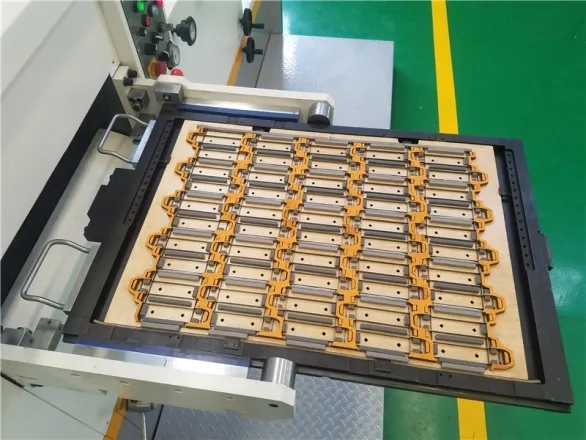

- Pneumatic chase-lock mechanism makes die change quick and die lock reliable.
- Super-hard, durable steel plates and plate frame made of qualitative materials.
- Adjustable bottom plate lock system to fit various die specifications without redoing plates.

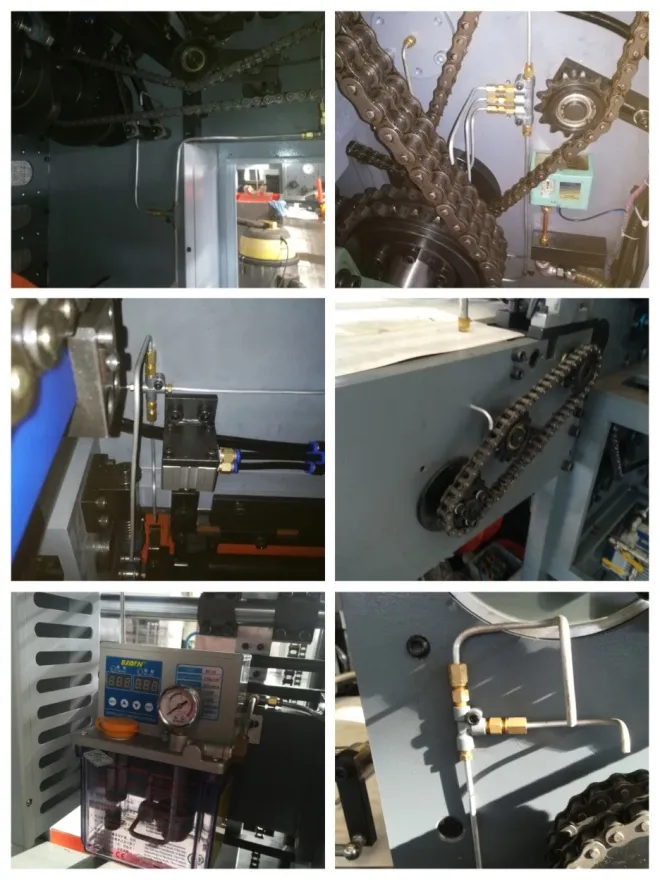

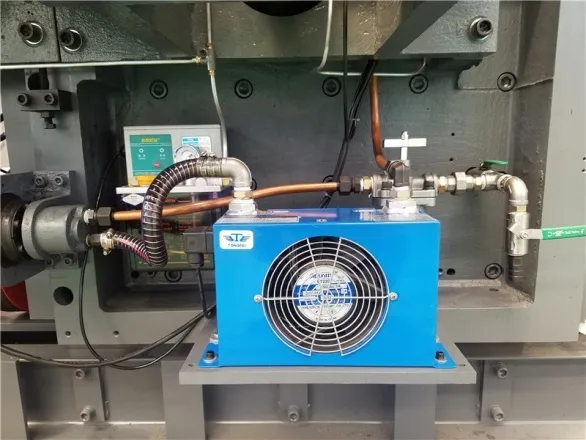

- Automatic pump cooling circulation system keeps platform pressure stable.

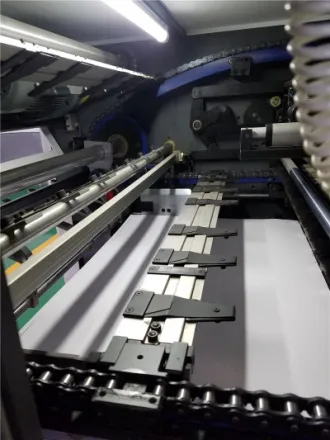

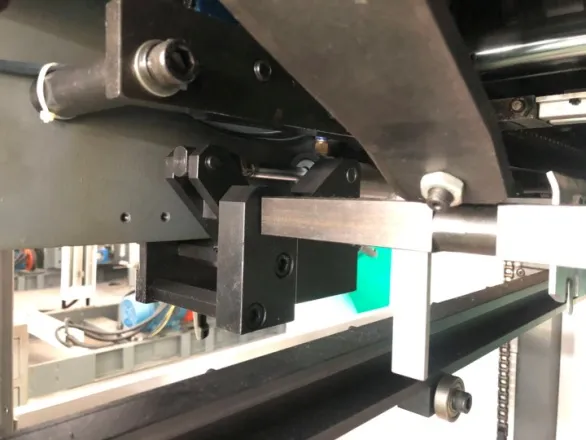

Side and back trimmer device ensuring tidy paper stacking.
- Side trimmer and back trimmer device ensuring tidy delivery.
- Adjustable expansion brush device ensuring paper delivery smoothly.

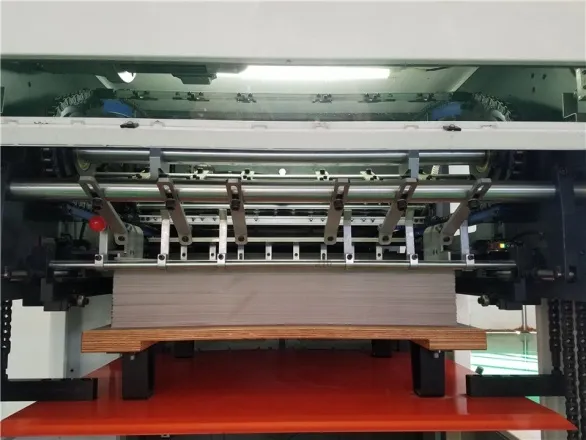

- Automatic secondary delivery mechanisms realize non-stop delivery.
- Pneumatic flap for test sheet removal; check accuracy in real time.
- Achieves accuracy within ±0.1mm at speeds of 8,000 sheets/hour.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Model | HT-1050A |
| Maximum Sheet Size | 1050 x 740 mm |
| Minimum Sheet Size | 400 x 360 mm |
| Maximum Die Cutting Size | 1040 x 730 mm |
| Inside Chase Size | 1050 x 740 mm |
| Die Cutting Precision | ±0.075 mm |
| First Cutting Rule | 10 mm |
| Height of Cutting Rules | 23.8 mm |
| Min. Gripper Margin | 9 mm |
| Max Feeding Pile Height | 1450 mm |
| Max Delivery Pile Height | 1300 mm |
| Max Die cutting Pressure | 300 Tons |
| Substrate / Cardboard | 80 g/㎡ - 2000 g/㎡, corrugated paper ≤4 mm |
| Compressed Air | 0.8 Mpa |
| Maximum Speed | 8000 s/h |
| Dimensions | L 4620 x W 3765 x H 2005 mm |
| Total power of motors | 16 KW |
| Gross weight | 15 Tons |
