FMC-920VS
FMC-920VS automatic high-speed window patching machine uses electrical components and drive components from internationally renowned brands to ensure window patching accuracy and operational reliability.
Introducing the FMC-920VS
The FMC-920VS is a high-speed, multi-functional automatic window patching machine engineered for the box packaging industry. Designed to CE safety certificate standards, it integrates a full servo structure with 10 sets of servo drives to guarantee precision positioning and long-term durability.
Equipped with specialized units for bottom-fed paper feeding, dual push claw correction, independent template gluing, and optional v-cutting, this machine is highly versatile. It is ideal for producing high-quality paper boxes including 3C electronic packages, cosmetics boxes, tissue boxes, underwear boxes, and toy boxes.

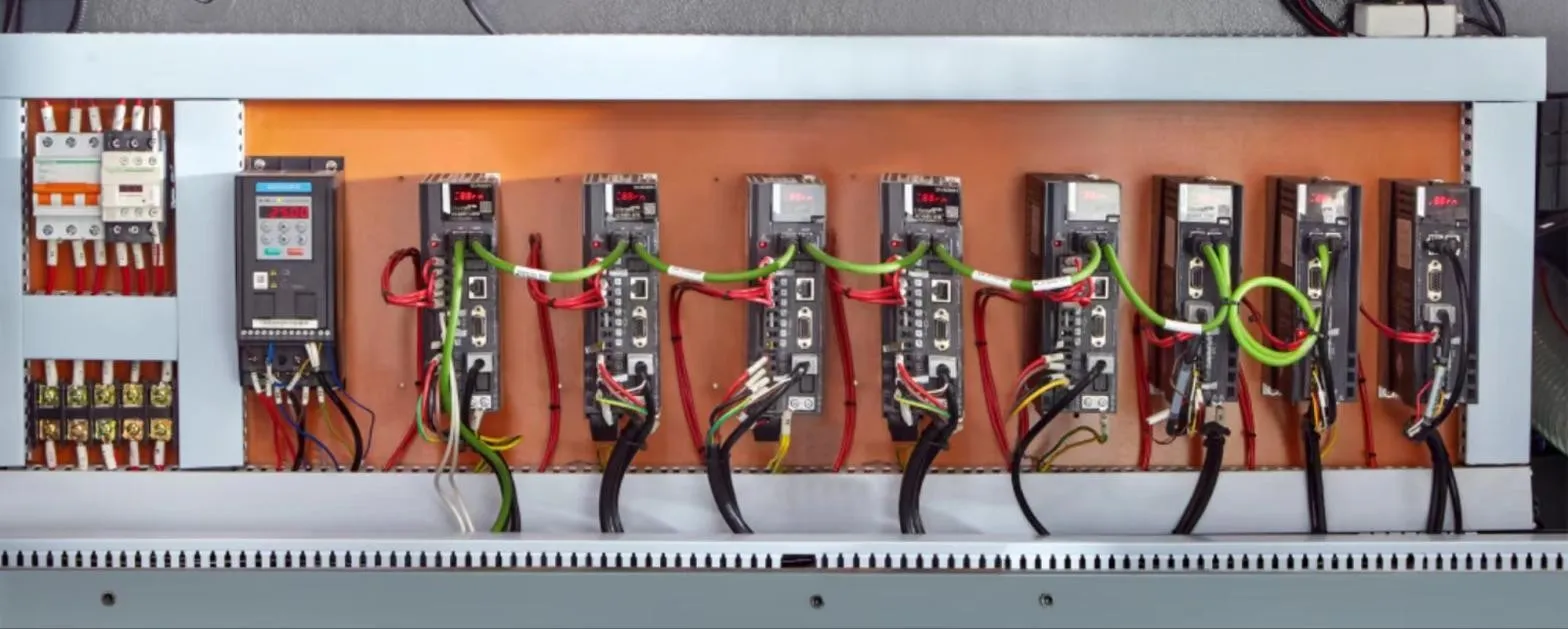

10-Servo Control
Equipped with 10 sets of servo systems to intelligently adjust parameters, ensuring stable and high-speed operation.
CE Standard Safety
Built to European CE safety certificate standards with an innovated frame and enhanced operator safety protections.
Ultra High-Speed Output
Reaches speeds of up to 24,000 sheets per hour (for blanks below 400mm) and 12,000 sheets per hour (above 400mm).
Advanced Engineering Features
Specially built to ensure high uptime and precise control for high-volume demands.
Machine Components

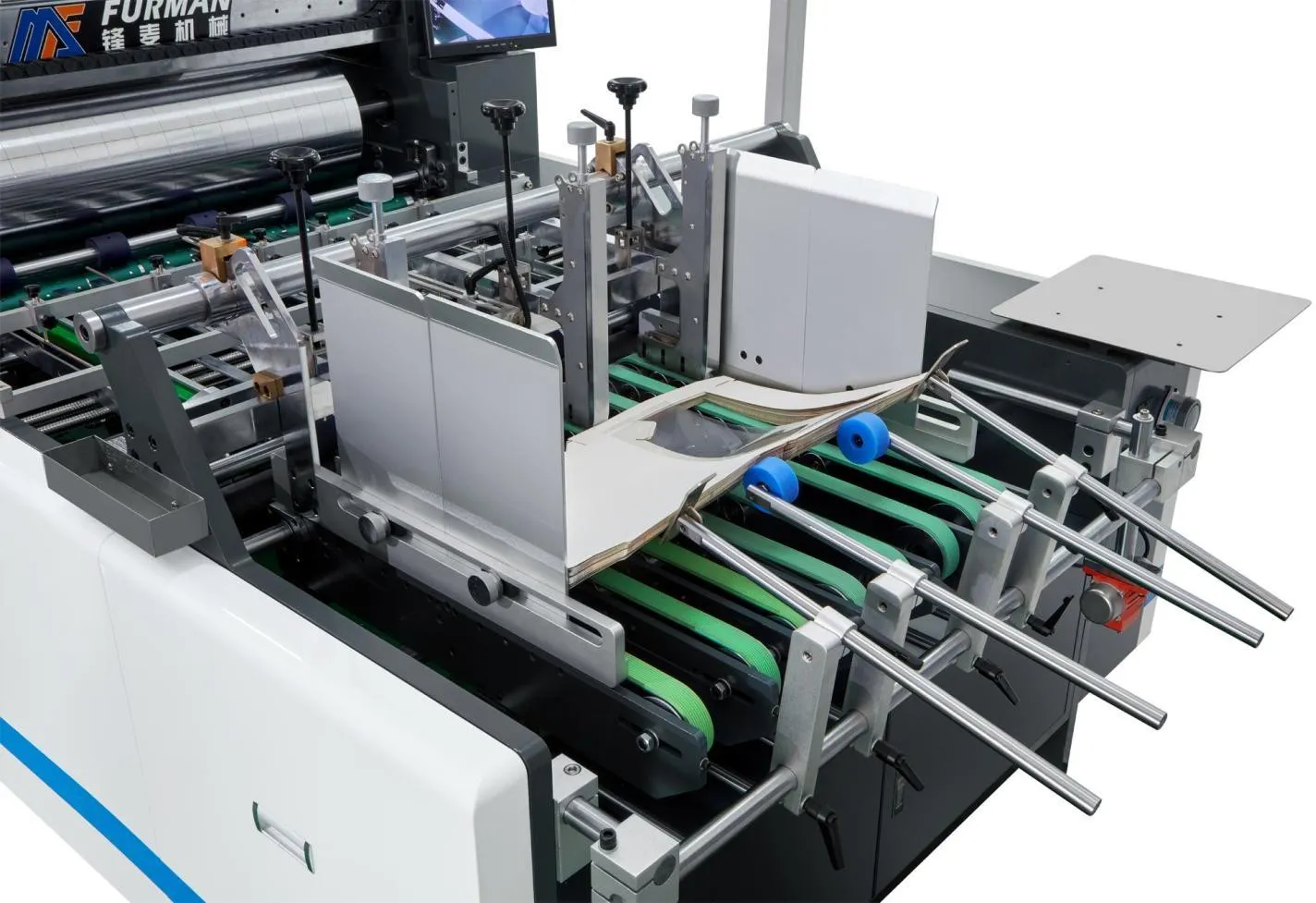

Independent 1-servo paper feeding mechanism discharging from the bottom, permitting continuous feeding.
- Independent 1-servo paper feeding mechanism with bottom discharge.
- Continuous paper loading without stopping the machine.
- Intermittent feeding uses photoelectric control, removing the need to manually set paper length.
- Vibration motor assists in smooth paper discharge; maximum speed of 600 times per minute.

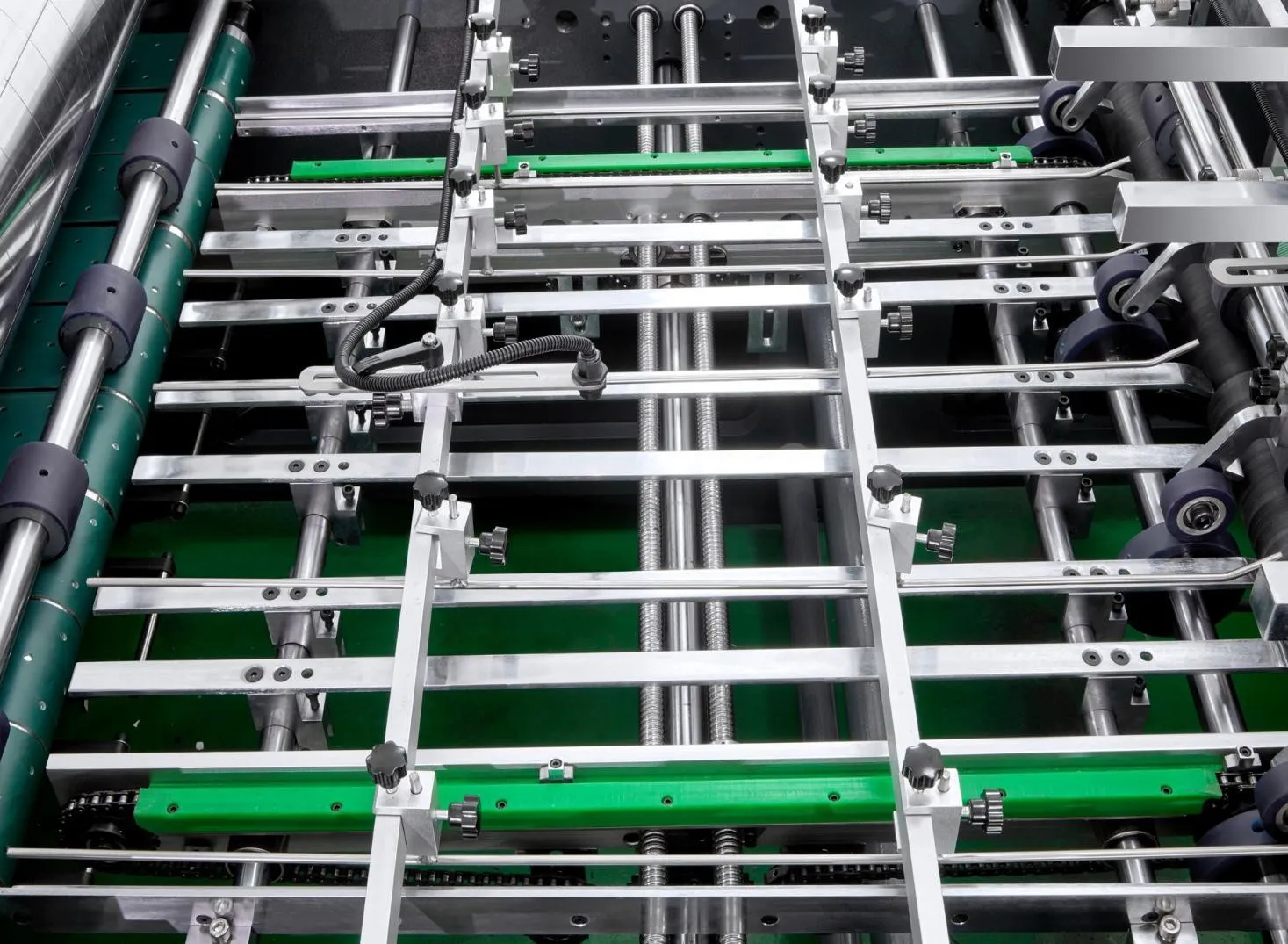

Independent servo drive with double push claw correction.
- Equipped with double push claw correction to reduce alignment errors.
- Adjustment locking device allows tuning the parallelism of the two gauges while running.
- Push claws can be disassembled/assembled based on the product carton size.

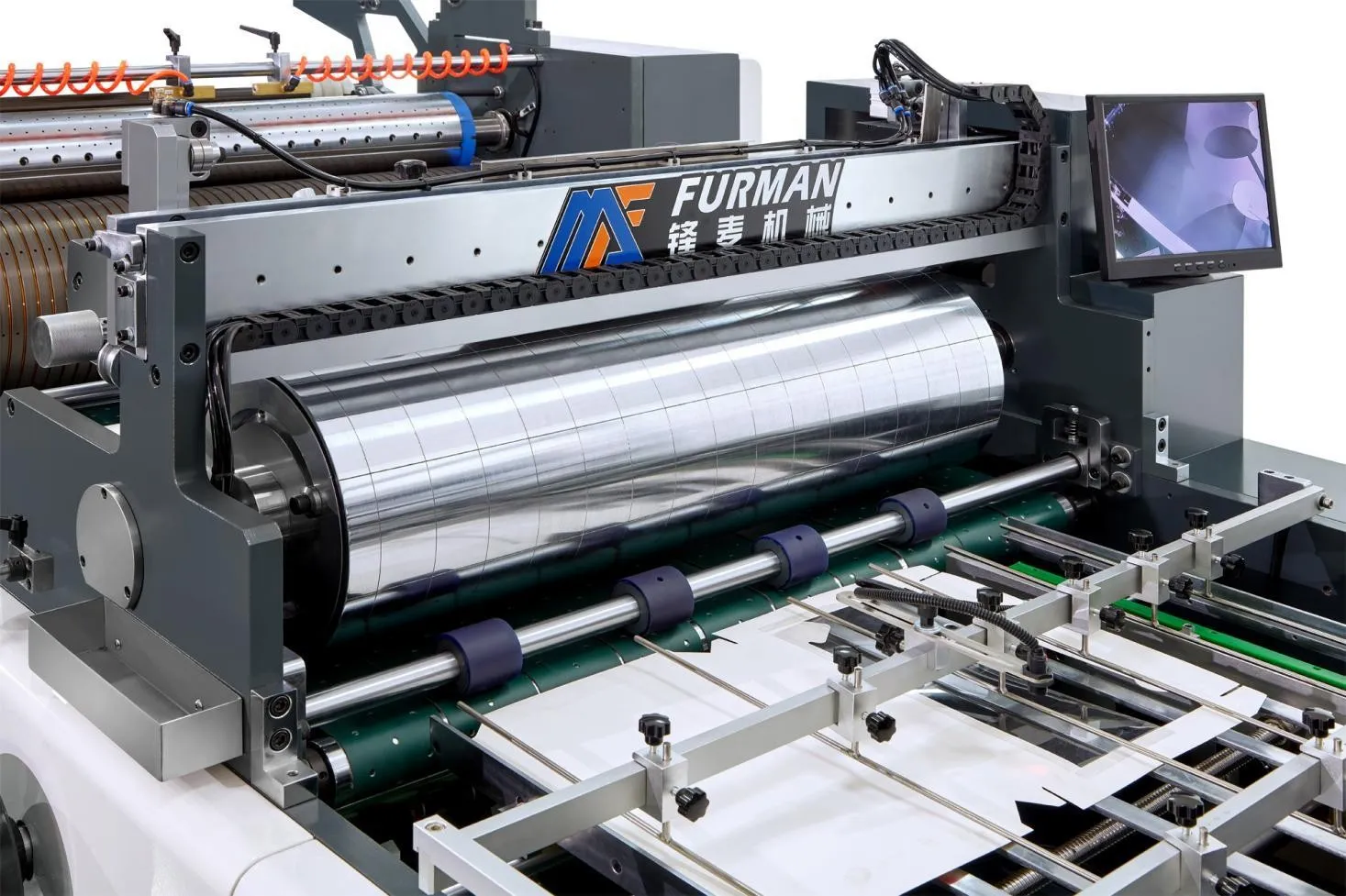

Independent servo-driven gluing with precise adjustments.
- Front, back, left, and right positions adjustable without stopping the machine.
- High-hardness stainless steel roller and flexible templates for custom glue patterns.
- Photoelectric induction automatically pops open the roller during paper leaks, keeping the belt clean.
- Gluing roller easily pulls out for cleaning.

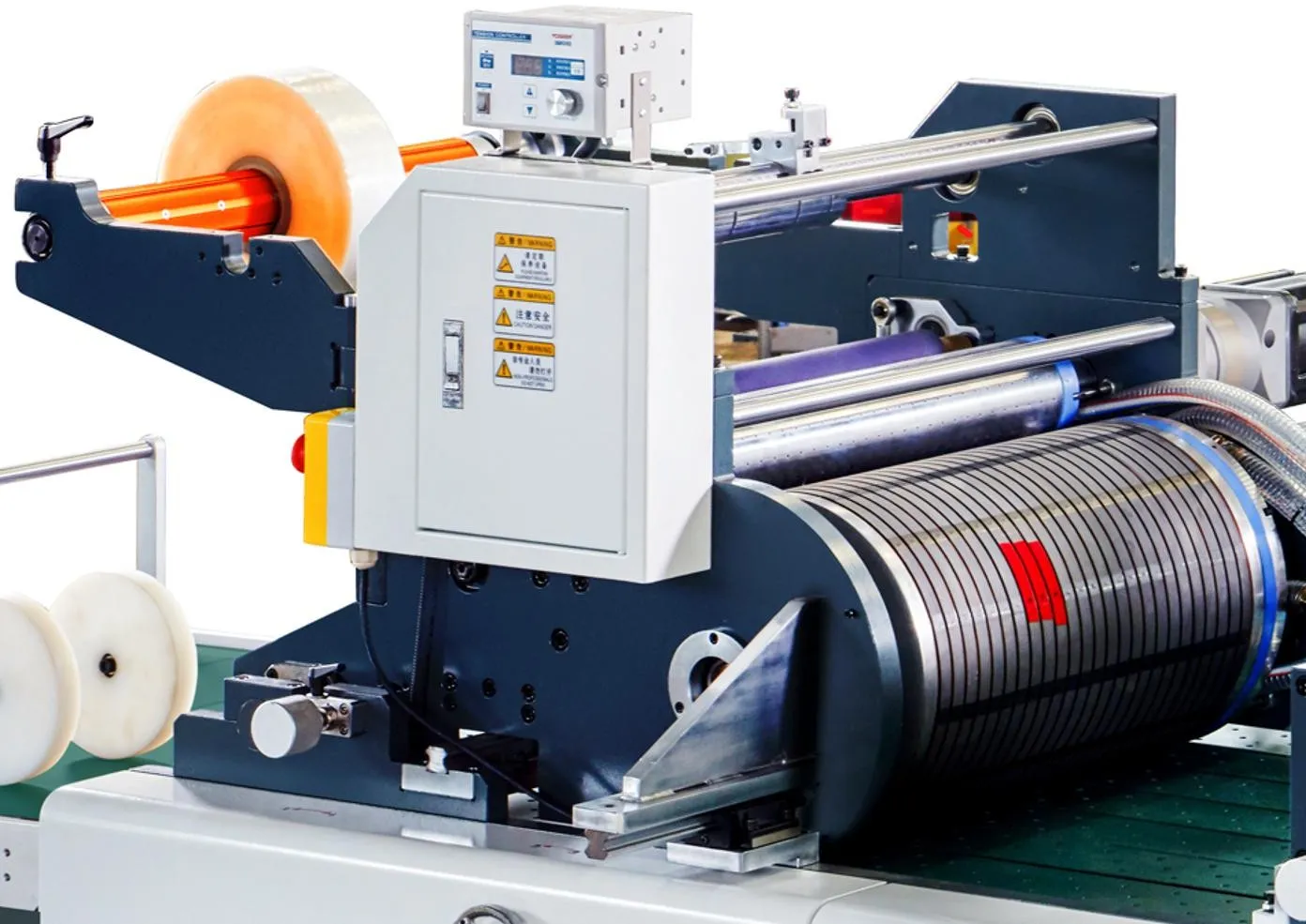

Independent servo-controlled film pulling and cutting.
- Digital setting of film length with independent servo-driven roller knife cutting.
- Three selectable cutting speeds and built-in blower/suction holes on the knife roller.
- Features a middle-cutting device designed specifically for tissue box window patching.

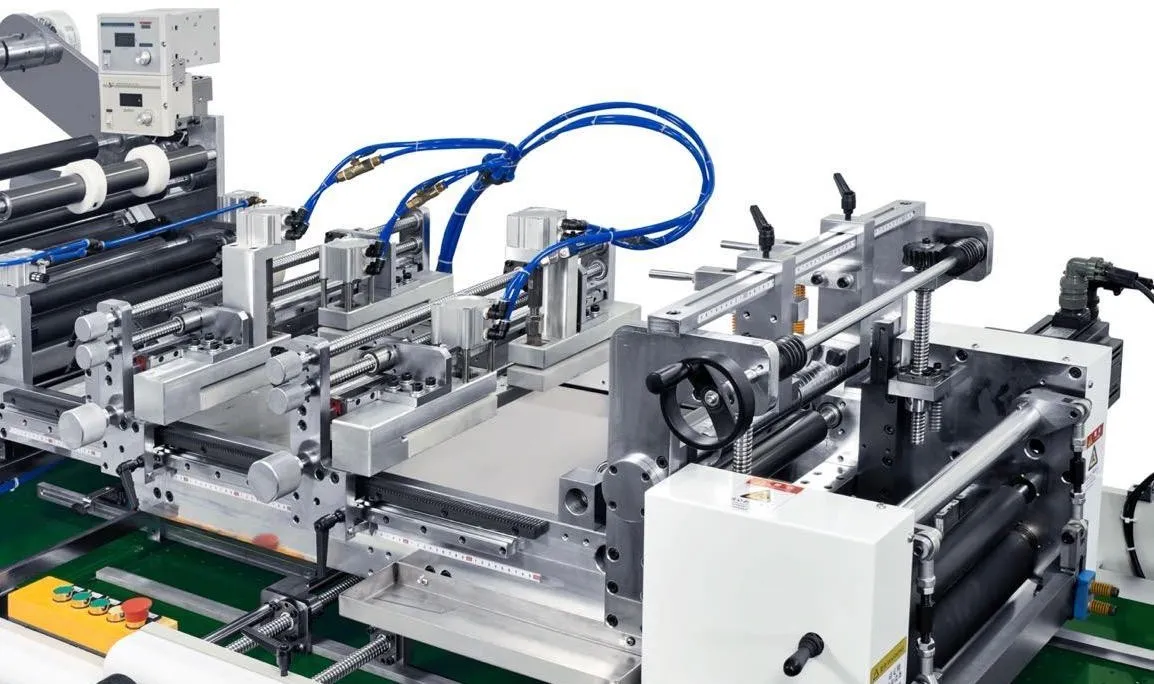

Advanced multi-mold bracket mechanism for specialized window profiles.
- Includes 2 sets of servo film pulling and 4 sets of mold mounting brackets.
- Allows production of round holes, environmental mark contours, and double vertical lines.
- Features continuous or intermittent film feeding modes depending on the product process.

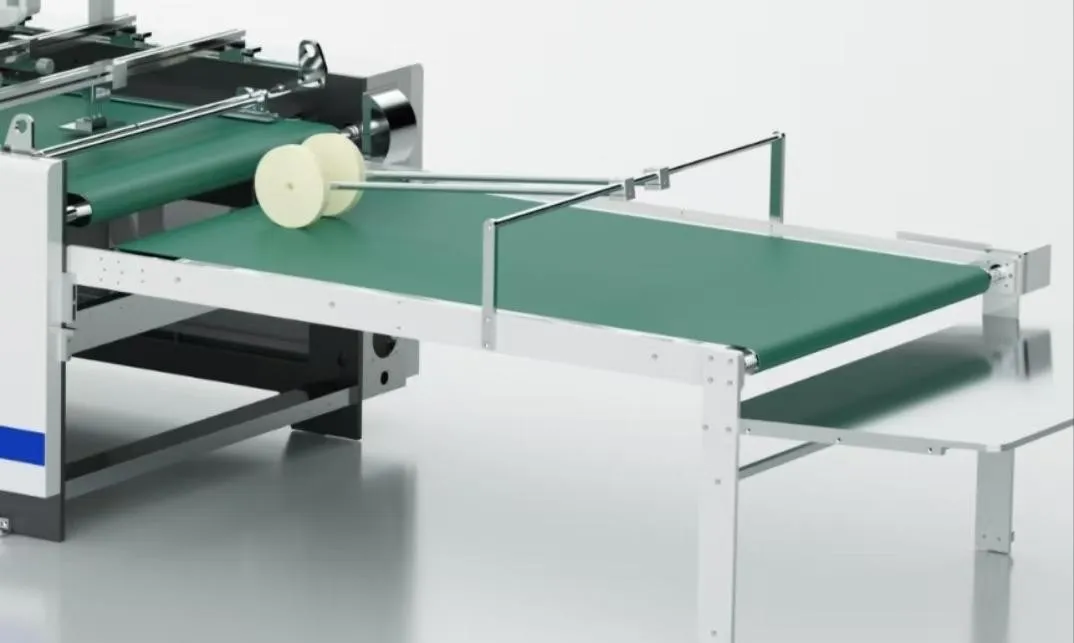

Imported soft belt conveyor preventing scratches with stacking collection.
- Soft belt conveyor prevents scratches, and frequency-controlled stacking keeps paper tidy.
- Equipped with photoelectric alarms, monitoring cameras, and custom sorting/counting functions.

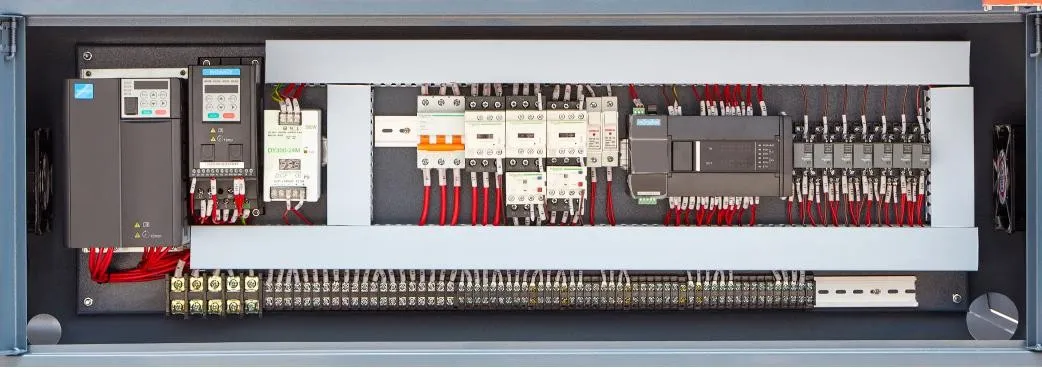

Displays real-time working conditions, indicates fault positions, and lists troubleshooting solutions.
- Equipped with various safety protection units.
- Visible and audible alarms will alert the operator on fault, shutting down automatically.

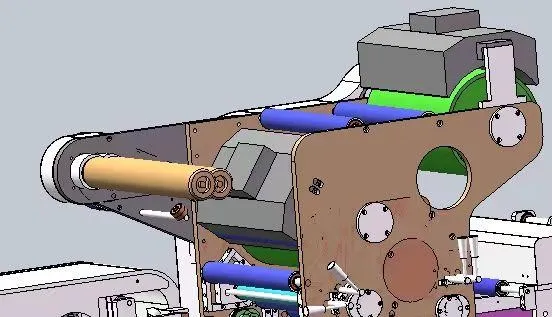

Double mirror rollers to heat and level the film on both sides.
- Electronic constant temperature system to set the temperature as needed.
- Continuously rotates and feeds film through special calculations to make heating uniform.

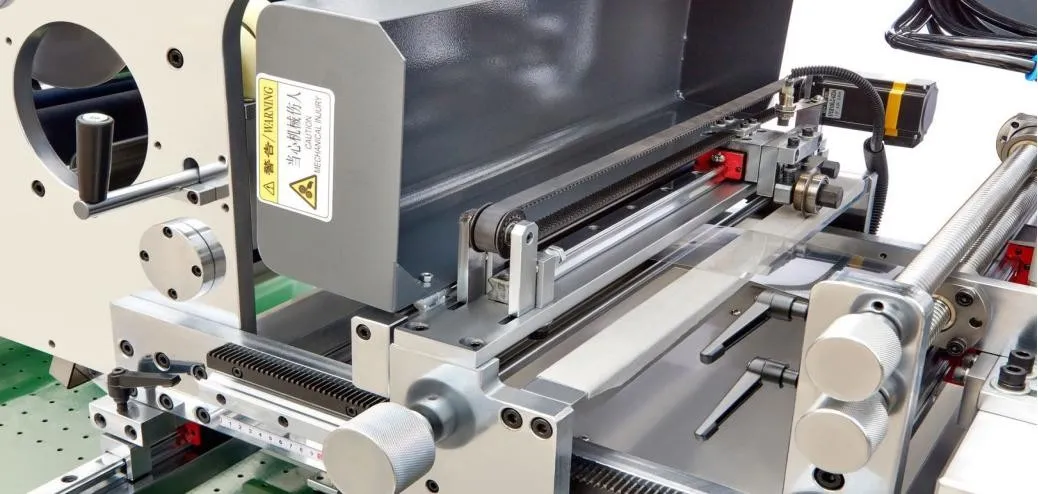

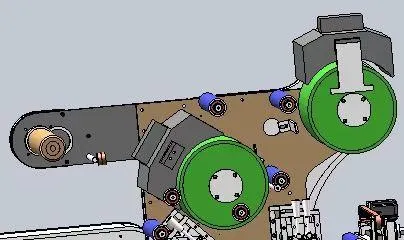

Optional line pressing mechanism for complex folding styles.
- Allows integration of horizontal line pressing according to user requirements.
Technical Specifications
| Parameter | Metric Specification |
|---|---|
| Model | FMC-920VS |
| Maximum Paper Size | W900 × L720 mm |
| Minimum Paper Size | W150 × L150 mm |
| Maximum Film Size | W500 × L400 mm |
| Minimum Film Size | W30 × L50 mm |
| Film Thickness | 0.03 - 0.25 mm |
| Cardboard Thickness | 200 - 2000 g/m² |
| Corrugated Board Thickness | ≤ 5 mm |
| Positioning Accuracy | ±0.75 mm (V-cutting ±0.5 mm) |
| Maximum Speed | 24,000 sheets/hour (below 400mm), 12,000 sheets/hour (above 400mm) |
| Max V-cutting Speed | 8,000 sheets/hour |
| Total Power | 28.5 Kw 380V AC |
| Air Requirement | 0.6 Mpa, >0.3 m³/min |
| Dimensions | L 8800 × W 1720 × H 1800 mm |
| Net Weight | 3800 KG |
